Storage & Handling

Adjustable Racks
Adjustable Racks Adjustable Transport Racks - Model A-80 for medium to large boards
Static Safe Racks hold circuit boards securely on two opposite sides for maximum protection during transport and storage, either horizontally or vertically.
Transport Racks Adjustable Transport Racks - Model A-76 and A-79 for small to medium boards
Static Safe Racks hold circuit boards securely on two opposite sides for maximum protection during transport and storage, either horizontally or vertically.
Universal Racks
Universal antistatic racks Universal antistatic racks
Economical racks for handling clinched, SMD, soldered or bare boards of any size with no adjustment. The universal Antistatic Rack are each slightly different in size, design and slot shape in a choice of different in size, design an slot shape in a choice of materials to meet a wide variety of applications.

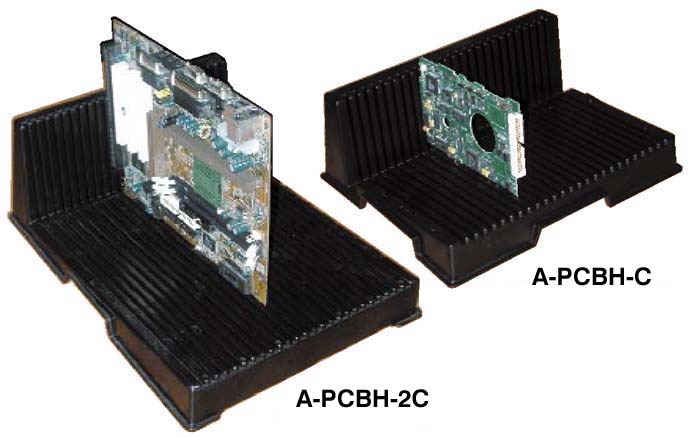

Angle Rak Model A-PCBH

Angle Rack Model A-PCBH

The Angle Rak is the only universal rack that holds different size boards on two contiguous sides for increased security. It is lightweight and holds boards inside a continuous slot rather than a lip like A-RA-18 and A-RA-20.

  • Holds boards inside a continuous slot on two sides.
  • Vertically stackable when not in use
  • Draining holes for use in degreasing and cleaning
Model A-PCBH-2C A-PCBH-C
Dimensions 14" x 10" x 5"
(356x254x127mm)
8" x 10" x 4"
(203x254x101mm)
25 Slots 0.100" x .187" (2,54x4,75mm);
0.4" (10,15mm) pitch
AM-CT-5 Flat PCB Handling Rack AM-CT-5 Flat PCB Handling Rack
Contour Size: L×W×H 411mm×280mm×22mm
Keep in 42 PCB plates
Surface Resistance: below 106 Ώ
AM-CR-2 PCB Handling Rack AM-CR-2 PCB Handling Rack
Contour Size: L×W×H 437mm×160mm×30mm
25PCS of circuit plates can be stored
Surface Resistance: below 106 Ώ
AM-CB-5 Anti-static, Modular Component Box AM-CB-5 Anti-static, Modular Component Box
Surface resistance: 104~106 Ώ
Exterior size:138x96x48mm
Interior size:120x82x36mm
Shape: combination drawer type
Carts
ATR-1 ESD Utility Cart - ATR-1
Utility Cart Trolley is designed to prepare and transport equipment, parts etc. to the assembly area. Makes a convenient mobile work surface for folding, sorting or repairs.

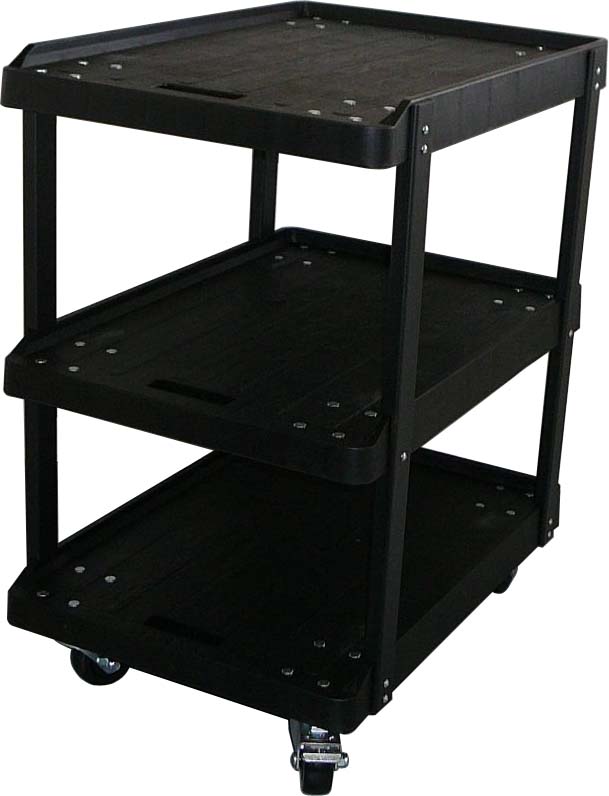

ESD Transport Cart - ATC-1 ESD Transport Cart - ATC-1
  • Depth 450 mm, width 650 mm, and height 775 mm
  • Loading capacity of top 50 kg, total loading capacity 150 kg
  • All wheels are made of ESD-conductive material.
  • All wheels, Ø 75 mm, with swivel, one with brakes.
ESD Container Dolly ADL-1 ESD Container Dolly - ADL-1
Container Dolly is made of strong, static dissipative and ware resistant high impact material. It is used to transport containers with PCB's, PCB Racks, parts etc. in ESD safe production environment.
Storage Systems
Antistatic Storage Systems ESD Storage Cabinet Systems
Conductive cabinets are the industry standard for the protection and safe handling of static sensitive components.
Antistatic storage cabinet & component boxv SMD Conductive Storage Boxes
Ideal for the kiting, in-process handling and safe transport of static-sensitive components including SOICs, PLCCs, SOTs and other small, surface-mounted devices. Boxes have a unique interlocking modular design. You can combine and interlock as many as boxes as you require and in any configuration you wish. Spring-loaded lids have a stay-open feature for convenient loading and removal of parts. Boxes have a surface resistivity of 10e2 to 10e5 ohms/square and are available in two sizes.
Surface Mount Device Boxes Surface Mount Device Boxes
Trays
ESD FiberStat Trays ESD FiberStat Trays
FibreStat 2000 is a specifically formulated composite material that gives permanent ESD properties to a wide variety of trays, boxes and pallets used in conveyor applications for electronic component production and assembly.

Protect Electronic Components During Assembly Operations with FibreStat 2000
