Products > Xtractor > XF-10 / XF-VT2
 |
XF-10 / XF-VT2 Range - High Vacuum (Tip) Extraction Units |
| Features |
- High Vacuum (Tip) Extraction Units
- Designed specifically for portability and extremely low noise levels.
- These high vacuum units are designed to extract and filter fumes and debris through small bore hoses and attachments. Ideally suited for soldering iron tip extraction, vac pens, flexi fume arms and any application requiring close proximity micro extraction.
|
|
|

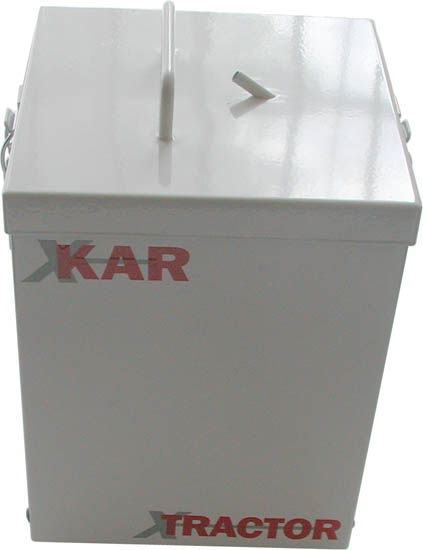

XF-10 EXTRACTOR |

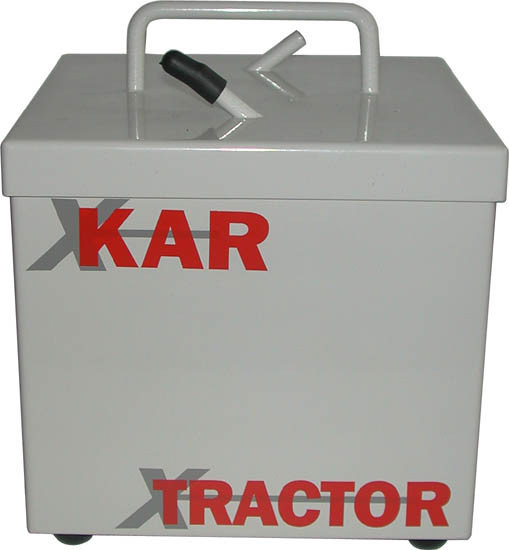

XF-VT2 EXTRACTOR |
| Unit Specifications |
| System |
Dimensions mm HxDxW |
Weight Kg |
Flow Rate 4.5mm I/D Hose |
Power Unit |
Rated Output kW |
Voltage |
Noise Level dBA |
Air requirements | |
| Pressure | Flow | ||||||||
| XF-VT2 | 170x150x170 | 1 | 22-30 L/ M | Air Ejector | 0.12 | 230IpH | <39 | 6 Bar | 0.6 NI/S |
| System |
Dimensions mm HxDxW |
Weigh Kg |
Flow
Rate 4.5mm I/D Hose |
Power Unit |
Rated Output kW |
Voltage |
Noise Level dBA |
Duct Size mm |
Duct Run mtrs |
Filter Efficiency % @ 1µm |
| XF-10 | 220x171x171 | 5 | 22-24 L/M | Linear Pump | 0.06 | 230IpH | <48 | - | - | 99.997 |
