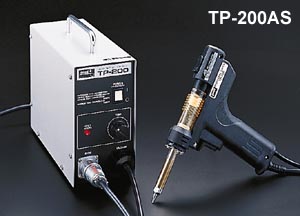

De-Soldering Station TP-200 AS
- COMPACT & LIGHT WEIGHT WITH COMPRESSED FEATURES
- SENSOR, WHICH INTEGRATED WITH CERAMIC HEATER PROVIDES SUPERIOR HEATING AND TEMP. CONTROL
HIGH INSULATION TYPE ANTI-STATIC MODEL TP-200AS
Anti-Static series provide delicate components safe from static damage TP-200AS.
Features
Compact & handy de-soldering gun. Powerful miniature pump built-in to reach vacuum pressure 600mm Hg. Efficient to use thru-hole to multi-layer P.C.B. |
POWERFUL 600mmHg VACUUM ARRIVAL
- POWERFUL SUCTION

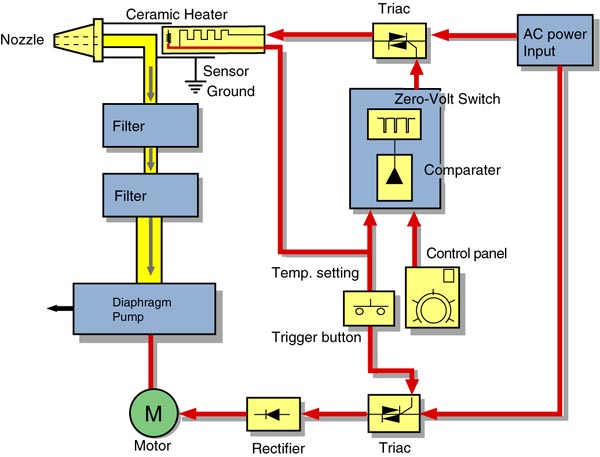

Built-in high power twin-pump (600mmHg.) designed for single and multi-layer P.C.B. When trigger is pressed, the wattage of the heater is boosted to offset the cooling effect of the air flow through the nozzle. After the trigger is released, the vacuum pump continues for 0.5 sec. to ensure all solder is removed from the nozzle. - SUPERIOR OPERATION EFFICIENCY
With GOOT special anti-vibration and low noise design. Ergonomically designed gun is safe and comfortable. - PRECISE TEMPERATURE CONTROL
Closed-loop temperature control circuit provides accurate temperature control from 250 to 450°C. - FEATURES QUICK HEAT AND QUICK HEAT RECOVERY
80W ceramic heater provides fast heat up, fast heat recovery and high insulation resistance. - SIMPLE CARTRIDGE REPLACEMENT
New designed spare cartridge enables simple filter replacement. High heat resistance and fragile free plastic cartridge.
Tip / Nozzle Temperature Stability
The characteristic curve has been derived with thermo-couple fit at tip and melting solder consecutively on 5X5mm sized trace layout of P.C.B. (TIP:PX-2RT-B).
Specification / Replacement Parts
Compatible to ISO-9000 series. Equivalent to MIL STD.2000A
CE CONFORMITY SERIES *1
MODEL | TP-200AS | TP-200 (CE) *1 | |
Voltage | 110-130, 220-240V AC | 220-240V AC | |
Power Consumption | 125W/220W *2 | 170-200W (55Wh) | |
Temp. setting range | 250-450°C | ||
Heater element | Ceramic element | ||
Temp. control system | Sensor feed-back (ON-OFF control) | ||
Insulation Resistance | Over 100MOhm (500V DC) | ||
Vacuum pump system | Diaphragm system (Twin pump) | ||
Max. Vacuum pressure | 600 mmHg | ||
Size | Station | 95 x 256 x 205 mm | |
De-soldering gun | 220x155 mm | ||
Station | 2.6 kg w/o vacuum hose & cord | ||
Weight | De-soldering gun | 0.3 kg | |
Total Weight | Approx. 2.9 kg | ||
Leak Voltage | less than 0.1 mV | ||
Earth Resistance | less than 0.3 Ohm | ||
Station-Handpiece cord | 1.2 m | ||
AC Power cord | 3 cored cord (with 3pin plug 1.5m) | ||
Accessories | Cleaning pin / Hand piece holder |
*2 - Rating for 100-130V / 220-240V
PARTS
Heater | TP-100/200H | |
Heater pipe | TP-100/200HP | |
Filter | TP-100/200F | |
Cartridge set | TP-100/200K | |
Cleaning pin (O 0,7) | TP-100/200CP0.7 | |
Cleaning pin (O 1,3) | TP-100/200CP0.7 |

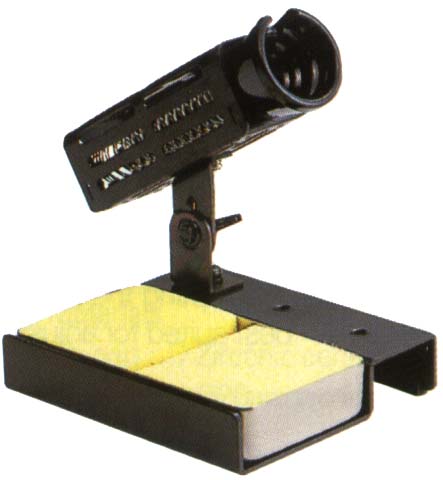

Includes exclusive Soldering Stand Model ST-76
Remove the receiver of ST-76 when using the stand of de-soldering gun TP-200. |
