Goot BrandTQ Series Quick Heat Soldering Iron

VERY CONVENIENT FOR FIELD SERVICE USE

TQ-95

Features

  • By pushing the button continuously (High position) the maximum temperature is reached 10 times faster than the normal position (Low)

  • The ergonomically designed grip is safe and comfortable

  • Compact and light weight making easy to carry

  • The standard heat insulation cap allows quick store (3 minutes after unplugging)

  • Perfect for field service technicians

CE MarkClick to enlarge image
MODEL Voltage /V Power consumption /W Lenght /mm Weight /g
TQ-95 110-130 AC 150/15 200 50

Parts



Available Tip Shape

Quick Heat Soldering Gun With Ceramic Heater Type

TQ-77 PISTOL TYPE QUICK HEAT SOLDERING GUN

  • The pistol grip was designed and adopted after careful ergonomics study. It can be operated for extended periods comfortably even by someone with a small hand.
  • The design allows full concentration on the work by making it easy to see the tip.
  • A two stage switching system with High (trigger pulled) and Low (normal position).
  • When pulling the trigger, the temperature rises to 330°C and the recovery time is 10 times faster than the Low (normal position).

TQ-77

Specifications

MODEL Voltage /V Power consumption /W Lenght /mm Weight /g
TQ-77/12 110-130 AC 150 / 15 166 90
TQ-77/22-CE 220-240 AC 200 / 20 176 90

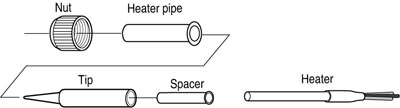

Parts

TQ-77 Heater TQ-77H
TQ-77 Heat resistance cap (option) TQ-CAP
TQ-77 Heater pipe TQ-77HP
TQ-77 Nut TQ-77NUT
TQ-77 Spacer TQ-77SS

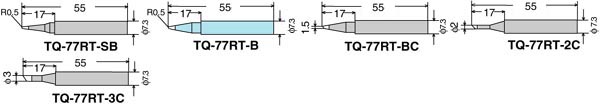

Available Tip Shapes
