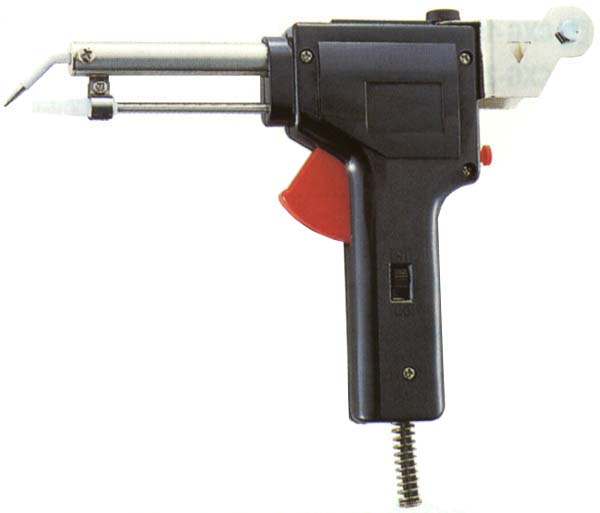

Goot BrandSoldering Guns HFC-40, HFC-60

  • Improves soldering speed because the solder is out from the nozzle when pulling the trigger
  • Both models have good heat efficiency and high insulation providing many years of trouble free operation
  • The spool of solder recommended for this gun is goot SE series 150g/200g (wire diameter 0.8 - 1.6mm)
  • Standard spool holder allowing for use of customer choice solder
  • Two stage switch between High and Low allows for choice of power which suites application

Click to enlarge image
MODEL Approx. Tip Temp /oC Consumption /W Length /mm Weight /g

HFC-40

 440/330 (High/Low) 38/19 (high/Low) 190 275

HFC-60

 470/370 (High/Low) 58/29 (high/Low) 190 285

Spare Parts

HFC-40 Heater  HFC-40H
HFC-60 Heater HFC-60H
Spare Nozzle HF-40/60N

Replacement Tips
