SSOP Small Shrink Outline Package

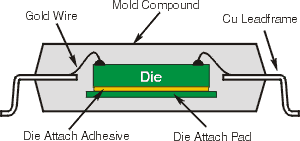

The SSOP package body size is compressed and the lead pitch is tightened to obtain a small version of the standard SOIC packages. Lead counts range from 8 to 64. Body sizes are 150, 209 and 300 mils. The SSOP package is JEDEC and EIAJ compliant. The package leads are solder plated.
Drawing | Part Number | Number of Pins |
Body Width |
Pitch | Quantity Per Tube |
Tape Width |
Tape Pitch |
Quantity 13" Reel |

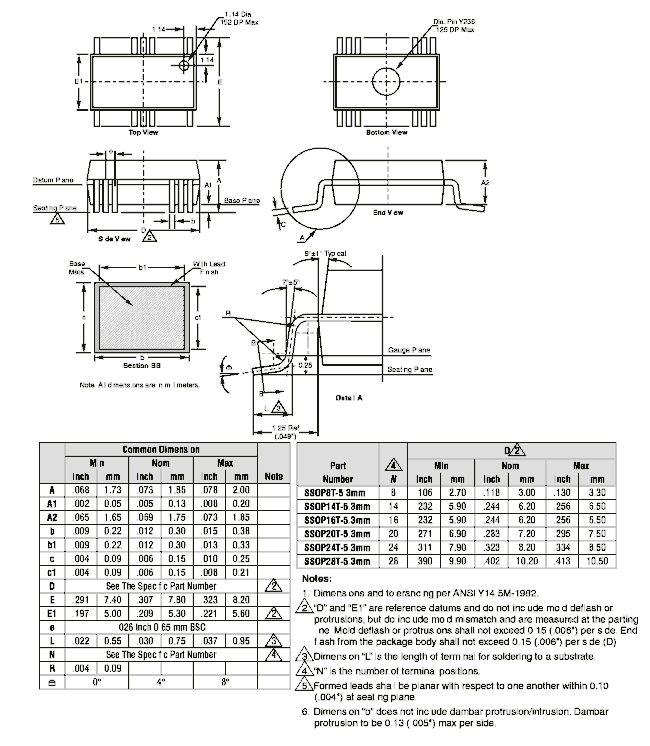

Drawing | SSOP8T-5.3mm | 8 | 5.3mm | .65mm | 156 | 12mm | 8mm | 2,500 |
SSOP14T-5.3mm | 14 | 5.3mm | .65mm | 100 | 16mm | 12mm | 1,000 | |
SSOP16T-5.3mm* | 16 | 5.3mm | .65mm | 80 | 16mm | 12mm | 1,000 | |
SSOP20T-5.3mm | 20 | 5.3mm | .65mm | 62 | 16mm | 12mm | 1,000 | |
SSOP24T-5.3mm | 24 | 5.3mm | .65mm | 66 | 16mm | 12mm | 1,000 | |
SSOP28T-5.3mm | 28 | 5.3mm | .65mm | 47 | 16/24mm | 12mm | 1,000 | |

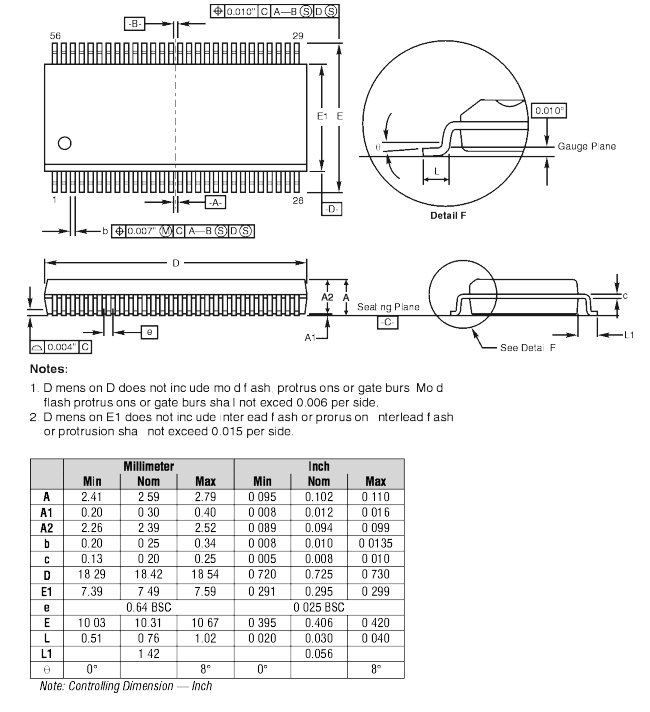

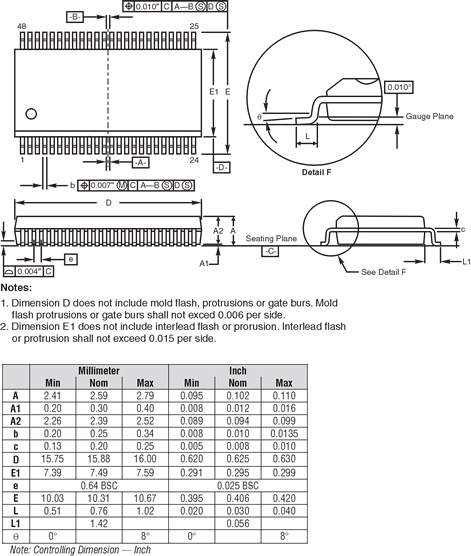

Drawing | SSOP48T-7.6mm | 48 | 7.6mm | 1.27mm | 30 | 32mm | 12/16mm | 1,000 |
Drawing | SSOP56T-7.6mm | 56 | 7.6mm | 1.27mm | 26 | 32mm | 12/16mm | 500 |
SSOP64T-10.2mm | 64 | 10.2mm | .8mm | — | 44mm | 16/24mm | 500 |
(*) Available as an ExposedPad™ SSOP Package by Amkor. ExposedPad™ can increase heat dissipation by as much as 110% over standard packages.
- Tube quantity may vary.
- Carrier tape is plastic.
- 209 and 300 mil body sizes/
- JEDEC and EIAJ package outline standard compliance.
- High-conductivity copper leadframes.
- Solder plate lead finish
