PLCC — Plastic Leaded Chip Carrier

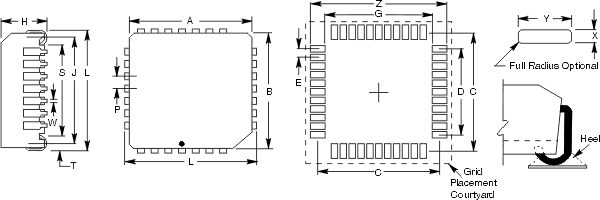

PLCC Plastic Leaded Chip Carrier Drawing

PLCC Component Dimension

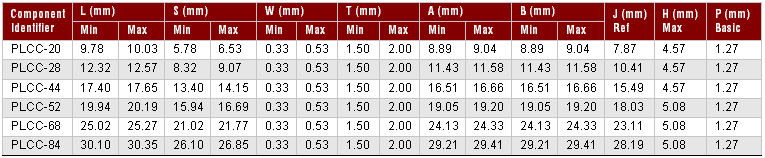

PLCC Component Dimension Table

PLCC Land Pattern Dimension

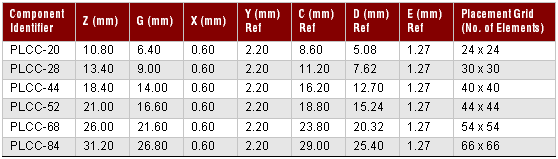

PLCC Land Pattern Dimension Table
