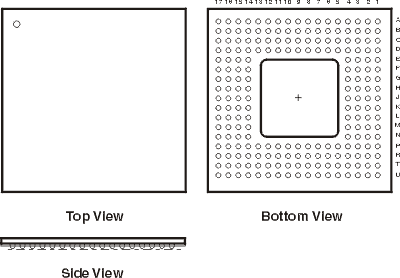

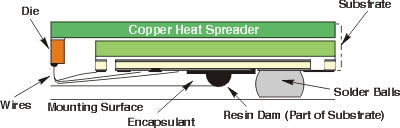

to SBGA Super Ball Grid Array
| Package | Pitch | A | B | C | D |
| SBGA | 1.27mm | .76 | .62 | .52 | .63 |
- All units in mm.
- Assumptions: 5 mils solder paste. Solder mask defined pad. Typical
motherboard no solder mask defined pad:
0.50 Pitch – 0.280.80
Pitch – 0.301.00
Pitch – 0.38
