TSOP Thin Small Outline Package
TSOP Type I
TSOP packages are thin body size components; thickness is 1.0mm. TSOP packages have four sides and are rectangular. Type I TSOPs have the leads protruding from the width portion of the package. Lead counts range from 28 to 48. Package body size ranges from 8 x 14mm to 12 x 20mm. |
Part Number | Number of Pins |
Body Size | Lead Pitch |
Quantity Per Tray |
Tape Width |
Tape Pitch |
Quantity 13" Reel |
TI-TSOP20/24-6x14.4mm-.5mm | 20/24 | 6 x 14.4mm | .5mm | 240 | 24mm | 12mm | 1,000 |
TI-TSOP28-8.1x11.8mm-.55mm | 28 | 8.1 x 11.8mm | .55mm | 234 | 24mm | 12mm | 1,000 |
TI-TSOP28/32-8x18.4mm-.5mm | 28/32 | 8 x 18.4mm | .5mm | 156 | 32mm | 12/16mm | 1,000 |
TI-TSOP28-8x20mm-.5mm | 28 | 8 x 20mm | .5mm | 156 | — | — | — |
TI-TSOP32-8x13.4mm-.5mm | 32 | 8 x 13.4mm | .5mm | 234 | — | — | — |
TI-TSOP32-8x18.4mm-.5mm | 32 | 8 x 18.4mm | .5mm | 156 | 32mm | 12/16mm | 1,000 |
TI-TSOP40-10x14mm-.5mm | 40 | 10 x 14mm | .5mm | 160 | — | — | — |
TI-TSOP40-10x18.4mm-.5mm | 40 | 10 x 18.4mm | .5mm | 120 | 32mm | 16mm | 1,000 |
TI-TSOP48-12x18.4mm-.5mm | 48 | 12 x 18.4mm | .5mm | 96 | 32mm | 16mm | 1,000 |
TSOP Type II |
Drawing | Part Number | Number of Pins |
Body Size | Lead Pitch |
Quantity Per Tray |
Tape Width |
Tape Pitch |
Quantity 13" Reel |
TII-TSOP20/26-7.6x17.14mm-1.27mm | 20/26 | 7.6 x 17.14mm | 1.27mm | 176 | 24mm | 12mm | 1,000 | |
TII-TSOP24/26-7.6x17.14mm-1.27mm | 24/26 | 7.6 x 17.14mm | 1.27mm | 176 | 24mm | 12mm | 1,000 | |
TII-TSOP24/28-10.16x18.41mm-1.27 | 24/28 | 10.16 x 18.41mm | 1.27mm | 100 | 32mm | 16mm | 1,000 | |
TII-TSOP26-7.6mmx17.14mm-1.27mm | 26 | 7.6 x 17.14mm | 1.27mm | 176 | 24mm | 12mm | 1,000 | |
TII-TSOP32-10.16x20.95mm-1.27mm | 32 | 10.16 x 20.95mm | 1.27mm | 117 | 32mm | 16mm | 1,000 | |
TII-TSOP40/44-10.16x18.42mm-.8mm | 40/44 | 10.16 x 18.42mm | .8mm | 135 | 32mm | 16mm | 1,000 | |
TII-TSOP44-10.16x18.41mm-.8mm | 44 | 10.16 x 18.41mm | .8mm | — | — | — | — | |
TII-TSOP44-10.16x18.42mm-.8mm | 44 | 10.16 x 18.42mm | .8mm | 135 | 32mm | 16mm | 1,000 | |
TII-TSOP44/50-10.16x20.95mm-.8mm | 44/50 | 10.16 x 20.95mm | .8mm | — | — | — | — | |
TII-TSOP50-10.16x20.95mm-.8mm | 50 | 10.16 x 20.95mm | .8mm | 117 | 32mm | 16mm | 1,000 | |
TII-TSOP54-10.16x22.22mm-.8mm | 54 | 10.16 x 22.22mm | .8mm | 108 | 44mm | 16mm | 1,000 | |
TII-TSOP54-12.7x22.22mm-.8mm | 54 | 12.7 x 22.22mm | .8mm | 84 | 44mm | 20mm | 1,000 | |

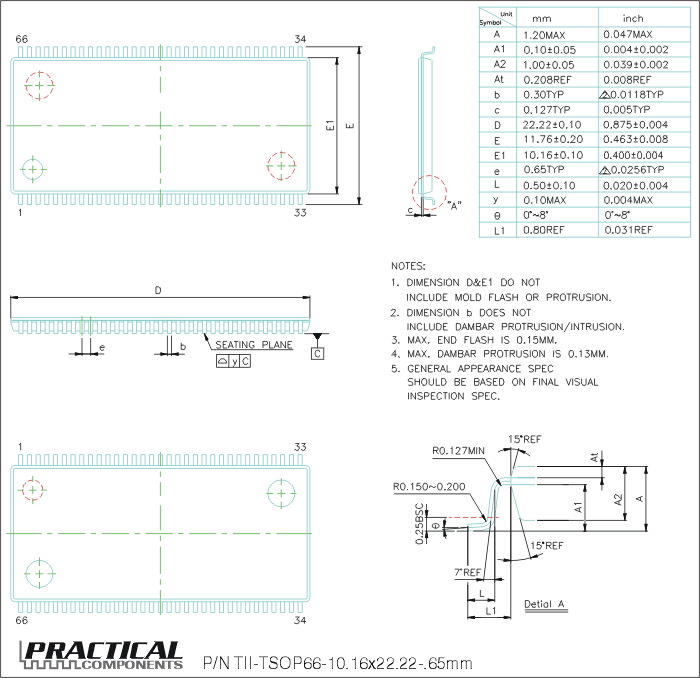

Drawing | TII-TSOP66-10.16x22.22mm-.65mm | 66 | 10.16 x 22.22mm | .65mm | 44mm | 20mm | 1,000 |
- Packaging is in JEDEC trays or tape and reel (quantities may vary).
- Body dimensions are measured by body length and width.
- Type I means that pins extend from narrow end (the width) end of the body.
- Type II means that pins extend from the wide end (the length) of the body.
- Carrier tape is plastic.
