Zero Charge™ Floor Mats

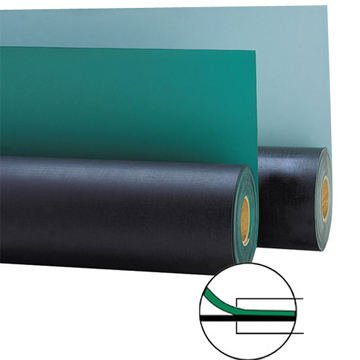

StatMat-F 4' x 32.8' Floor Mat
2-Layer Rubber, Heat and Chemical Resistant
StatMat-T
StatMat-T

Features:

  • Temperature resistant. Will not get damaged by hot solder or soldering irons.
  • Offer excellent resistance to oil, grease and most of common solvents.
  • Useful for semiconductor, computer & electronic parts factories, electronic assembly, and chemical laboratories.
  • Both have mat finish (glossy available through special orders).
  • Will not peel, chip, or curl.
  • Ground cords and snaps are included with the kits only.
  • Materials
    • Top layer: static dissipative NBR
    • Bottom layer: conductive NBR.
  • Color:
    • Top layer: G=Grey, B=Light Blue, Gr-Green
    • Bottom layer: Black
Technical Specification
Thickness 0.120" (3mm)
Width 4' (1.22m)
Length 32.8' (10m)
Hardness (KSM6518-19) Top layer - 65
Bottom layer - 66
Tensile Strength (LB/SQ inch) Top layer - 1548
Bottom layer - 1820
Elongation (%) Top layer - 395
Bottom layer - 285
Surface Resistivity (ASTM-D257) Top layer - 107-8 Ohm/Sq
Bottom layer - 104-5 Ohm/Sq
Resistance to ground Less than 107 Ohm/Sq
Chemical Resistance Solvent, Acidic, Alkali, Oil, Aromatics
Non Chemical Resistance D.O.P Ketone
5KV decay time < 0.01sec.

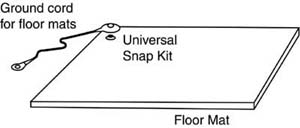

Floor mat set : AFS-a' x b'
2-Layer Rubber, Heat and Chemical Resistant

The set includes:

  • StatMat-F Size a' x b'
  • A-UniSnap - Universal Snap Kit 10 mm,
  • AG-FMF - Ground cord for floor mats, black 10ft, female (to fit male 10 mm snap on the mat)
Select part number from the following table:
Size Part Number
Grey Blue Green
4' x 32.8'
(1,22 x 10m)		 StatMat-F-G StatMat-F-B StatMat-F-Gr
4' x 5'
(1,2 x 1,5 m)		 AFS-4x5-G AFS-4x5-B AFS-4x5-Gr
4' x 6'
(1,2 x 1,8 m)		 AFS-4x6-G AFS-4x6-B AFS-4x6-Gr
4' x 8'
(1,2 x 2,4 m)		 AFS-4x8-G AFS-4x8-B AFS-4x8-Gr
