XVP-100 Vacuum Pick-Up Pencil
Complete with XVP-10

CE Mark

XVP-100
XVP-100

Low noise, high vacuum space-saving package

Universal Vacuum Pick-Up Tool for manual placement of any kind of SMD components and component-handling operations.

Universal Vacuum Pick-Up Tool for manual placement of any kind of SMD components and component-handling operations.

Vacuum Pick-Up Pencil has been designed to obtain small size and small foot print. It is the smallest, high-performance unit in the industry. It is also a low-voltage tool, completely safe, and ergonomic. It comes with Vacuum Pick-Up Handle which includes soft, ESD silicone, temperature resistant hose, vacuum bent probe and 3 sizes of ESD vacuum cups. It also has a holder to place a handle when not in use. Quiet, solidly designed, made in Japan vacuum pump guarantees trouble-free operation.

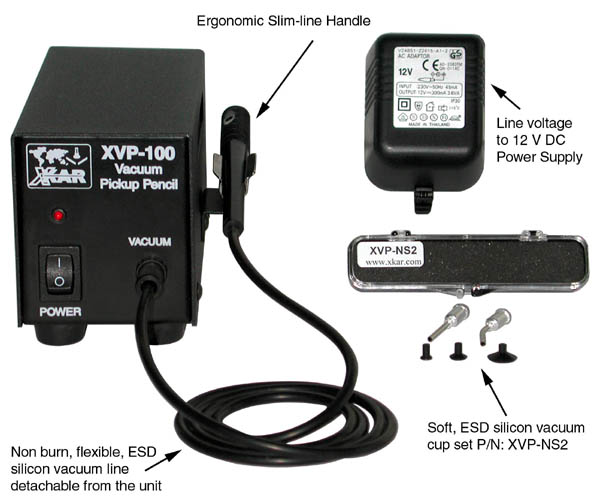

System includes:

  • XVP-100 Base unit
  • XVP-10S Vacuum Pick-up Pencil
  • XVP-NS2 Vacuum Probe Set (including 2 needles and 3 suction cups)
  • Power Supply X-AC1 for 115V or X-AC12 for 220-240V

Specifications

Input Voltage

110-120, 220-240V AC
Power Consumption Max. 20 VA

Vacuum Pressure

10" of Hg (250mmHg)
Air Source Built in pump
Weight 2,0 kg (4,4 lbs.)
System dimensions 88 x 166 x 88 mm
3.5" x 6.5" x 3.5"
Packaged weight 3.6 kg (8 lbs.)
