Silver Conductive Epoxy |
|
Forms high strength conductive bonds
This two part silver epoxy offers high electrical conductivity and
strong conductive bonding. Use in place of traditional soldering on heat
sensitive components. Good for repairing defective traces and creating
jumpers on boards. Can be used as an effective heat sink adhesive. This

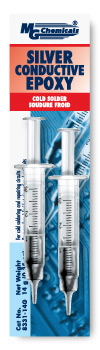

Conductive Silver Epoxy comes in two 7g syringes.
Frequently Asked Questions on this product
Q. Can I solder to Silver Conductive Epoxy?
A. No, Silver Conductive Epoxy has the temperature contraints of
an epoxy and cannot be soldered to. Soldering to this product will cause
it to melt.
Q. My 8331 product has a small discoloration. Is this a problem?
A. The discoloration is not a problem and will not affect the
adhesive nor the conductive properties.
Specifications
Specification |
Test Method |
Result |
Minimum operating temp. |
|
-30 °C (-22 °F ) |
Maximum operating temp. |
|
90 °C (194 °F ) |
Cure time @ 24°C (75°F) |
|
4 hours |
Cure time @ 65°C (150°F) |
|
10 minutes |
Working time @ 22°C |
|
10 minutes |
Volume resistivity @ 25°C |
MIK-STD-883E Notice
3, method 5011.4,
paragraphs 3.5.8,
3.8.11.1 (Covered
Under A2LA Accreditation) |
0.38 ohm · cm |
Tensile strength |
ASTM-D-638-02A |
911 psi |
Elongation |
ASTM-D-638-02A |
0.3 % |
Compressive Strength |
ASTM-D-695-02A |
1100 psi |
Flexural Strength |
ASTM-D-790-03 |
2,500 psi |
Shear Strength |
ASTM-D-732-02 |
234 psi |
Cantilever Beam (IZOD) Impact |
ASTM-D-256-02 E1 |
0.39 ft lb ft / in |
Thermal Expansion |
ASTM-E-831-03 |
79.3 mm/mm°C |
Part Number |
Mfr. Part # |
Sizes Available |
Description |
MG-8331-14G |
8331-14G |
14g (0.35 oz) |
Two 7g syringes
3ml each |
|
|
|
