Angulated Cutters

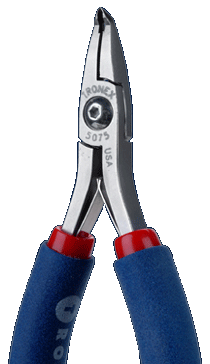

Miniature 50º

An SMT cutter with a very small cutting head. Used for exceptionally fine cutting. Relieved for maximum accessibility. Razor Flush® cutting edges.

Cutting Edge

These cutters are available in one cutting edge finish:

Flush

Handle Lengths

These cutters are available in two different handle lengths:

5075 - Standard handle length.

7075 - Ergonomic handle length.
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
RAZOR FLUSH® .004"-.025"
0.10mm-0.65mm
38-22 AWG		 5075 7075

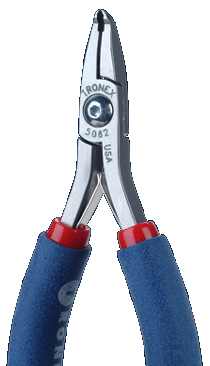

Small 50º

Most popular angulated cutter. Small cutting head with relief for excellent visibility. Durability combined with fine cutting. Flush cutting edges.

Cutting Edge

These cutters are available in one cutting edge finish:

Flush

Handle Lengths

These cutters are available in two different handle lengths:

5082 - Standard handle length.

7082 - Ergonomic handle length.
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
FLUSH .008"-.030"
0.1mm-0.8mm
32-20 AWG		 5082 7082

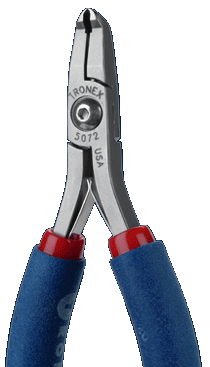

Large 50º

Largest cutting head. Robust. Excellent in cutting several leads in a single cut. Relieved for enhanced visibility. Flush cutting edges.

Cutting Edge

These cutters are available in one cutting edge finish:

Flush

Handle Lengths

These cutters are available in two different handle lengths:

5072 - Standard handle length.

7072 - Ergonomic handle length.
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
RAZOR FLUSH® .008"-.390"
0.2mm-1mm
32-18 AWG		 5072 7072

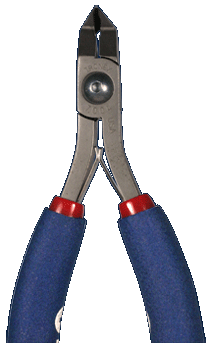

Large 50º Pointed

Large cutting edge with pointed tip. Short jaw for enhanced control. Flush cutting edges.

Cutting Edge

These cutters are available in one cutting edge finish:

Flush

Handle Lengths

These cutters are available in two different handle lengths:

5004 - Standard handle length.

7004 - Ergonomic handle length.

CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
FLUSH .008"-.031"
0.2mm-0.8mm
32-20 AWG		 5004 7004

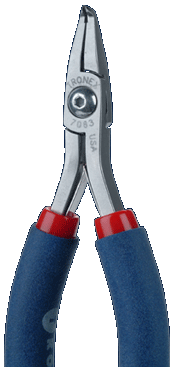

Small 70º

An SMT cutter. Steep angle with a very fine cutting head allows special access. Razor Flush® cutting edges.

Cutting Edge

These cutters are available in one cutting edge finish:

Flush

Handle Lengths

These cutters are available in two different handle lengths:

5083 - Standard handle length.

7083 - Ergonomic handle length.
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
FLUSH .008"-.025"
0.2mm-0.65mm
32-22 AWG		 5083 7083

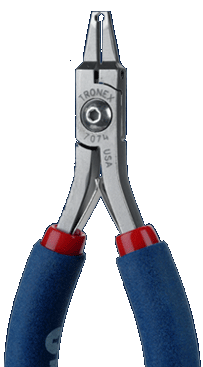

Miniature 90º

Long, very narrow jaw with miniature opposing cutting edges at end permit cutting in highly confined areas. Razor Flush® cutting edges.

Cutting Edge

These cutters are available in one cutting edge finish:

Flush

Handle Lengths

These cutters are available in two different handle lengths:

5074 - Standard handle length.

7074 - Ergonomic handle length.
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
FLUSH .008"-.025"
0.2mm-0.65mm
32-22 AWG		 5074 7074
