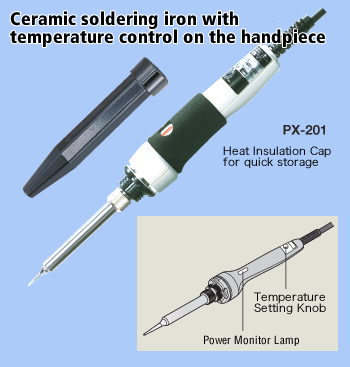

Goot Brand ESD Safe Temperature Controlled Lead-Free Soldering Iron PX-201

Features and Benefits:

  • High Output Ceramic Heater (70Watts)
  • Lead Free Compatible due to large high output heater.
  • Accurate control of the tip temperature: There is a temperature control in the handle for easy adjustment.
  • Ergonomic Handpiece Grip.
  • Light and comfortable to use in the field or on the workbench.
  • Wide variety of tips available.
  • Heat insulation cap for quick storage for field technicians.
  • Power Monitor Lamp to indicate when power is on.
Technical Specifications
Model PX-201
Voltage 110-130, 220-240V AC 50/60Hz
Power Consumption 70W
Temperature Setting Range 250-450 °C
Insulation Resistance (500V DC) Over 100MΩ
Temperature Control System Sensor Feedback ( ON-OFF Control)
Length 210mm (w/o cord bushing)
Weight Approx. 90g (w/o cord)
Replacement Parts
PX-201 Heater PX-20H PX-201 Spacer TQ-77SS
PX-201 Heater Barrel TQ-77HP(S) PX-201 Cap TQ-CAP
PX-201 Collar TQ-77NUT

 Replacement Parts

Replacement Tips
