XRF-10 No Clean Paste Flux for Lead Free Soldering

XRF-10 paste flux is a mildly activated, resin-based formulation developed to offer a broad process window and pin-probable residues. The superior wetting ability of XRF-10 results in bright, smooth, shiny, solder joints. This Paste Flux offers very low post process residues, which remain crystal clear and probable even at the elevated temperatures required for today's lead free alloys. It has shown to reduce or eliminate voiding under micro- BGAs. XRF-10 also offers high humidity tolerance and a chemistry developed for use in air reflow. This material has been utilized on various assemblies with RF designs without cleaning; however, the compatibility of flux residues on RF assemblies is strongly dependent upon circuitry design.

Features:

  • For use with Lead-Free alloys and also Sn/Pb alloys
  • Pin probe testable residues
  • Reduces voiding
  • Excellent wetting
  • Aqueous clean if required
  • Air reflow / nitrogen not necessary
  • Can be printed, brushed, or dispensed

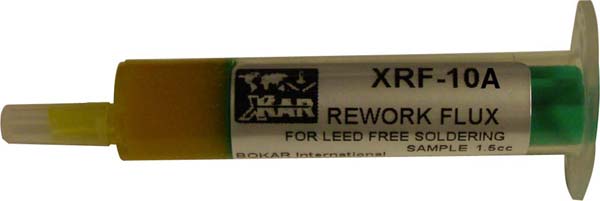

Part #: XRF-10A

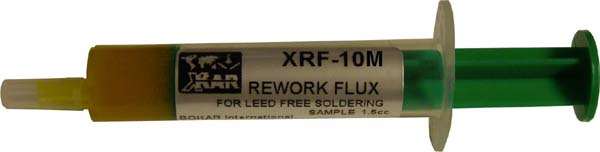

Part #: XRF-10M

XRF-10MC

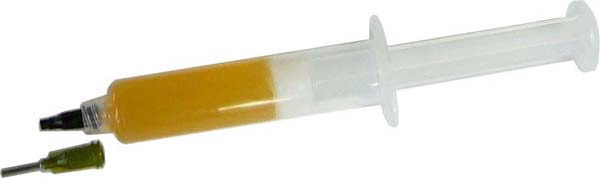

Part #: XRF-10MC

Technical Data Sheet: Lead Free Paste Flux Specifications.pdf

MSDS: XRF-10 Safety Material Data Sheet according to 91/155EN.pdf
