XDP-200D Digital Fluid Dispensing System

Logo X-KAR

XDP-200 microprocessor based system is the most advanced digital dispensing system available today.

XDP-200 is a state of the art digital dispensing unit capable of dispensing fluids of very wide viscosity range (from water-like to heavy solder pastes). The unit is of modern construction and utilizes the latest achievements in semiconductor and microprocessor-control technology.

Features

  • Digital timer.
  • Constant flow solenoid.
  • Program controlled or Manual Dispensing.
  • Digitally displayed functions and settings.
  • Timing adjustment in 0,01 or 0,001 increments.

CE Mark

XDP-200D Digital Fluid Dispensing System

XDP-200D



It’s unique and premier features include:

  • The smallest footprint in the industry to save your bench space. Space-saving syringe holder attached to the unit (or optional free standing holder).
  • Extremely easy operation and programming with choice of 5 modes, multiple programs, program parameters viewing function and values programming function.
  • Vacuum Pick-up Pencil Port (can be used as vacuum pencil with optional XVP-10D vacuum pick-up hand piece).

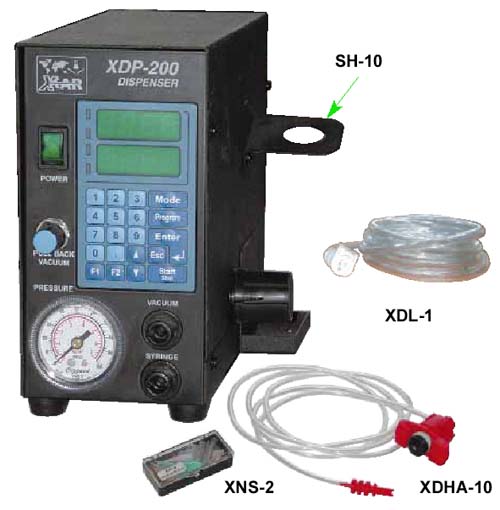

System includes

  • XDP-200D Base
  • SH-10 Side mounted syringe holder for 10 cc syringe
  • XDHA-10 Dispensing Head Assembly for 10cc syringes
  • XFS-1 Foot Switch
  • XDL-1 Compressed Air Connecting Hose
  • XNS-2 Dispensing Tip Set

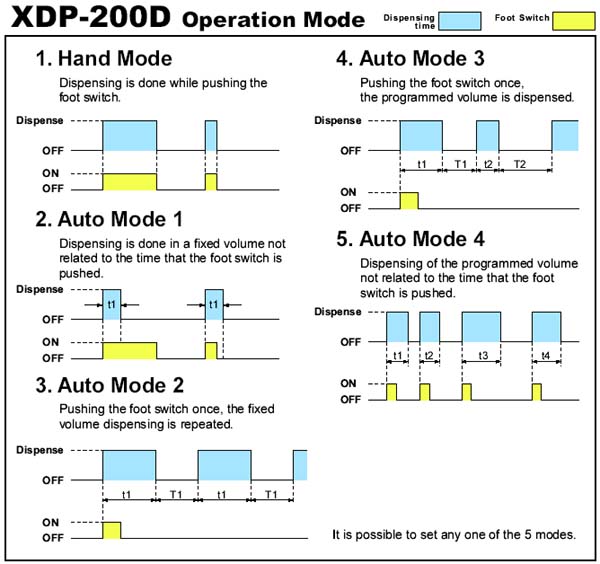

XDP-200D Operation Mode

XDP-200D Operation Mode



Specifications

Input Voltage 110-120, 220-240V AC
Power Consumption Max. 20 VA
Internal Voltage 24 V
Operating Pressure 2 to 100 psi (0,2 to 7 bar)
Air Source Shop Air or Compressor
Time Range Full shot range of 0,01 99.9 sec.
Repeat Accuracy ± 0,05%
(Microprocessor controlled)
Reset Time Less than 9 milliseconds
Weight 3.0 kg (6.6 lbs.)
System dimensions 225 x 166 x 88 mm
8.9" x 6.5" x 3.5"
Packaged weight 3.6 kg (8 lbs.)

Optional Equipment:

  • XVP-10D-SET Vacuum Pick-Up Pencil hand piece
    with connector to dispenser and XVP-NS2 Probe Kit

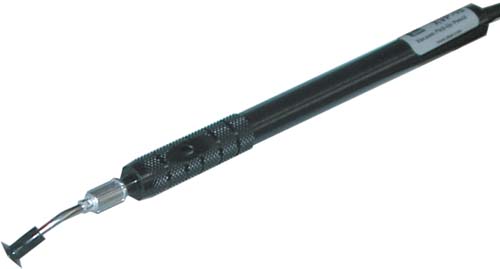

XVP-10D Vacuum Pick-Up Pencil Handpice
  • XDS-1 Universal Syringe Stand
  • XT Series - Tapered Dispensing Needles
  • XS Series - Stainless Steel Needles lengths 1/2" (12,7 mm) with Epoxy Hub
  • XNS-2 - Dispensing Tip Set
XDS-1 Universal Syringe Stand
XDS-1
