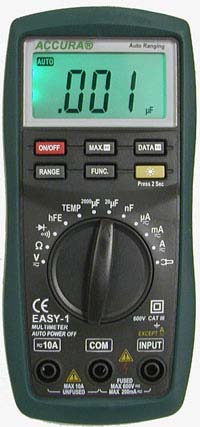

| ACCURA™ EASY-1 Auto ranging Digital MultiMeter with "K" thermocouple
and battery tester |
 |
 |
- This professional and portable MultiMerer is easy to read with its
clear backlit LCD.
- Has Thermocouple "K" input built-in to measure
temperature.
- Includes convenient battery tester.
- Simple operation of the selector switch makes taking measurements
convenient and fast.
- Overload protection and low battery indication are provided.
- This meter is ideal for use in the field, workshop, school, hobby
and home applications.
- Selectable auto range and manual range.
- Automatic Power off.
- Features data hold and Maximum value hold.
- The meter may be set to display in engineering units.
- Has excellent quality/price ratio and was designed as a basic must
for every technician or electrician.
|
Technical Specifications
| DC Voltage |
| Range |
Resolution |
Accuracy |
| 200mV |
0.1mV |
±0.70% of rdg ± 3 digits |
| 2V |
1mV |
| 20V |
0.01V |
| 200V |
0.1V |
| 600V |
1V |
±0.8% of rdg ±3 digits |
| Input Impedance: 10MΩ |
| AC Voltage |
| Range |
Resolution |
Accuracy |
| 200mV |
0.1mV |
±0.80% of rdg ±5 digits |
| 2V |
1mV |
| 20V |
0.01V |
| 200V |
0.1V |
| 6000V |
1V |
±1.00% of rdg ±3 digits |
| Input Impedance: 10MΩ, Frequency Range: 40 to 4000Hz,
Calibrated in RMS of since wave |
| Resistance |
| 200Ω |
0.1Ω |
±1.0% of rdg ±3 digits |
| 2KΩ |
1Ω |
| 20KΩ |
10Ω |
| 200KΩ |
0.1KΩ |
| 2MΩ |
1KΩ |
| 20MΩ |
10KΩ |
±1.00% of rdg ±5 digits |
| Maximum open Circuit Voltage: 3.0V, Overload Protection:250V
dc RMS, AC for all range |
| DC Current |
| Range |
Resolution |
Accuracy |
| 200uA |
0.1 uA |
±1.20% of rdg ±3 digits |
| 2000uA |
1uA |
| 20mA |
0.01mA |
±1.2% of rdg ±8 digits |
| 200mA |
0.1mA |
| 2.00A |
0.001A |
±2.00% of rdg ±8 digits |
| 10.00A |
0.01A |
| Over load Protection: F 15A/250 fused for 10A |
|
AC Current
|
| Range |
Resolution |
Accuracy |
| 200uAmA |
0.1 uA |
±1.50% of rdg ±5 digits |
| 2,000uA |
1uA |
| 20.00mA |
0.01mA |
| 200mA |
0.1mA |
| 2.00A |
0.001A |
±3.00% of rdg ±8 digits |
| 10.00A |
0.01A |
| Over load Protection: F 15A/250 fused for 10A, Frequency Range 40 to 400Hz |
|
Battery
|
| Range/ Load current |
Resolution |
Function |
| 1.5V/50mA |
0.01V |
Show the approx, voltage of
battery |
| 3.0V/30mA |
0.01V |
| 9.0V/12mA |
0.01V |
| Audible Continuity |
| Buzzer |
Built in buzzer will sound if resistance is lower than 30 Ω |
| Diode |
Resolution: 1mV |
Test Current:25uA |
Open Circuit Voltage:3.0V |
| Transistor |
hFE: 1 to 1000 |
Base Current: 10uA |
Vce: 3.0 V |
