XDP-100 Low Cost Fluid Dispenser

XDP-100 is a state of the art dispensing unit capable of dispensing fluids of very wide viscosity range (from water-like to heavy solder pastes). The unit is of modern construction and utilizes the latest achievements in semiconductor and microprocessor-control technologies.

CE Mark

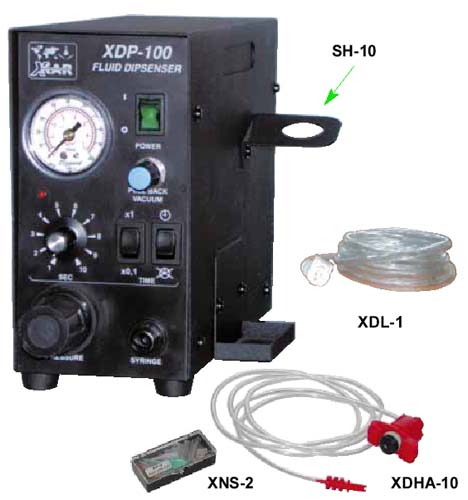

XDP-100 Digital Fluid Dispensing System

XDP-100

Features

  • Digital timer.
  • Constant flow solenoid.
  • Adjustable pull-back for controlling the drip of fluid between dispense cycles
  • Foot-pedal actuated
  • Timing adjustment in 0.1 or 1 seconds increments.
  • The smallest footprint in the industry to save your bench space. Space-saving syringe holder attached to the unit.

System includes

  • XDP-100 Base Unit
  • SH-10 Side mounted syringe holder for 10 cc syringe
  • XDHA-10 Dispensing Head Assembly for 10cc syringes
  • XFS-1 Foot Switch
  • XNS-2 Dispensing Tip Set
  • XDL-1 Compressed Air Connecting Hose

Specifications

Input Voltage

110-120, 220-240V AC
Power Consumption Max. 20 VA

Internal Voltage

24 V

Operating Pressure

2 to 100 psi (0,2 to 7 bar)

Air Source Shop Air or Compressor

Time Range

0.1 to 10 second

Weight 3.0 kg (6.6 lbs.)
System dimensions 225 x 166 x 88 mm
8.9" x 6.5" x 3.5"
Packaged weight 3.6 kg (8 lbs.)

Optional Equipment:

  • XDS-1 Universal Syringe Stand
  • XT Series - Tapered Dispensing Needles
  • XS Series - Stainless Steel Needles lengths 1/2" (12,7 mm) with Epoxy Hub
  • XNS-2 - Dispensing Tip Set

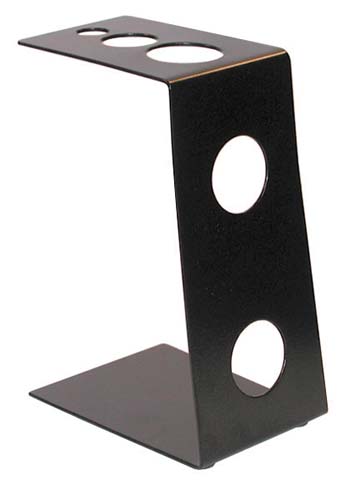

XDS-1 Universal Syringe Stand
XDS-1
