Standard Cutters

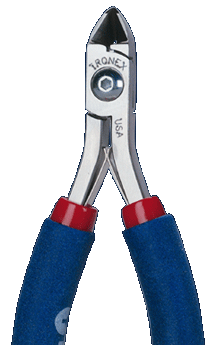

Oval Cutters

Oval head cutters are extremely popular. Used for general purpose cutting. Strong. Versatile.


Semi-Relief

Full-Relief

Cutting Edge

These cutters are available in three different cutting edge finishes:

XXX1 - Semi-Flush

XXX2 - Flush

XXX3 - Razor Flush®

Handle Lengths

These cutters are available in two different handle lengths:

5XXX - Standard handle length.

7XXX - Ergonomic handle length.

Semi-Relief
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
  SEMI-RELIEF
SEMI FLUSH .008"-.049"
0.2mm-1.25mm
32-16 AWG		 5111 7111
FLUSH .006"-.049"
0.15mm-1.25mm
35-16 AWG		 5112 7112
RAZOR FLUSH® .004"-.039"
0.10mm-1mm
38-18 AWG		 5113 7113
  FULL-RELEIF
SEMI FLUSH .008"-.047"
0.2mm-1.2mm
32-16 AWG		 5121 7121
FLUSH .004"-.047
0.1mm-1.2mm
38-16 AWG		 5122 7122
RAZOR FLUSH® .004"-.035"
0.1mm-.9mm
38-19 AWG		 5123 7123

Full Relief

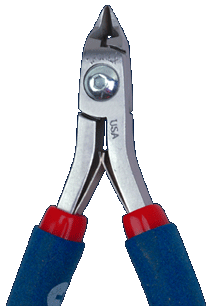

Taper Cutters

Taper head cutters are very popular. The pointed head allows for increased cutting access yet has sufficient strength to avoid tip breakage when used within its capacity.


Semi-Relief

Full-Relief

Cutting Edge

These cutters are available in three different cutting edge finishes:

XXX1 - Semi-Flush

XXX2 - Flush

XXX3 - Razor Flush®

Handle Lengths

These cutters are available in two different handle lengths:

5XXX - Standard handle length.

7XXX - Ergonomic handle length.

Semi-Relief
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
  SEMI-RELIEF
SEMI FLUSH .008"-.049"
0.2mm-1.25mm
32-16 AWG		 5211 7211
FLUSH .006"-.049"
0.15mm-1.25mm
35-16 AWG		 5212 7212
RAZOR FLUSH® .004"-.039"
0.10mm-1mm
38-18 AWG		 5213 7213
  FULL-RELEIF
SEMI FLUSH .008"-.045"
0.2mm-1.15mm
32-17 AWG		 5221 7221
FLUSH .004"-.041"
0.1mm-1.05mm
38-19 AWG		 5222 7222
RAZOR FLUSH® .004"-.035"
0.1mm-0.9mm
38-19 AWG		 5223 7223

Full Relief

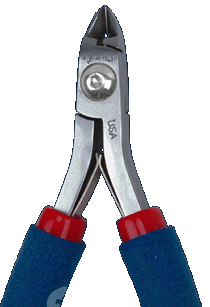

Miniature Oval Cutters

Miniature oval head cutters are used for fine cutting work, such as with SMT, or work under a microscope.


Semi-Relief


Cutting Edge

These cutters are available in three different cutting edge finishes:

XXX1 - Semi-Flush

XXX2 - Flush

XXX3 - Razor Flush®

Handle Lengths

These cutters are available in two different handle lengths:

5XXX - Standard handle length.

7XXX - Ergonomic handle length.

Semi-Relief
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
  SEMI-RELIEF
SEMI FLUSH .008"-.049"
0.2mm-1.25mm
32-16 AWG		 5311 7311
FLUSH .004"-.049"
0.1mm-1.25mm
38-16 AWG		 5312 7312
RAZOR FLUSH® .004"-.031"
0.1mm-.8mm
38-20 AWG		 5313 7313


Miniature Taper Relief Cutters

Miniature Taper Relief cutters are used only for exceptionally fine cutting work. Usually access to the cutting area is difficult, requiring the very low profile of this cutter with full relief.


Semi-Relief


Cutting Edge

These cutters are available in three different cutting edge finishes:

XXX1 - Semi-Flush

XXX2 - Flush

XXX3 - Razor Flush®

Handle Lengths

These cutters are available in two different handle lengths:

5XXX - Standard handle length.

7XXX - Ergonomic handle length.

Semi-Relief
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
  SEMI-RELIEF
SEMI FLUSH .008"-.043"
0.2mm-1.1mm
32-17 AWG		 5421 7421
FLUSH .004"-.039"
0.1mm-1mm
38-18 AWG		 5422 7422
RAZOR FLUSH® .004"-.028"
0.1mm-0.7mm
38-21 AWG		 5423 7423


Large Oval Cutters

Large oval head cutters have more head material for greater cutting capacity. General purpose cutting. Often used for cutting cables and in wire harness work.


Semi-Relief

Full-Relief

Cutting Edge

These cutters are available in three different cutting edge finishes:

XXX1 - Semi-Flush

XXX2 - Flush

XXX3 - Razor Flush®

Handle Lengths

These cutters are available in two different handle lengths:

5XXX - Standard handle length.

7XXX - Ergonomic handle length.

Semi-Relief
CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
  SEMI-RELIEF
SEMI FLUSH .008"-.059"
0.2mm-1.5mm
32-15 AWG		 5511 7511
FLUSH .006"-.059"
0.15mm-1.5mm
35-15 AWG		 5512 7512
RAZOR FLUSH® .004"-.051"
0.1mm-1.3mm
38-16 AWG		 5513 7513
  FULL-RELEIF
SEMI FLUSH .008"-.055"
0.2mm-1.4mm
32-15 AWG		 5521 7521
FLUSH .006"-.055"
0.15mm-1.4mm
35-15 AWG		 5522 7522
RAZOR FLUSH® .004"-.047"
0.1mm-1.2mm
38-16 AWG		 5523 7523

Full Relief

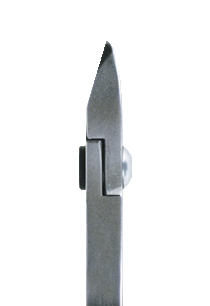

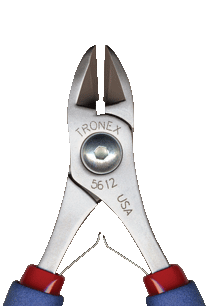

Extra Large Oval Cutters

Much longer and wider head adds cutting range.

Cutting Edge

These cutters are available in three different cutting edge finishes:

XXX1 - Semi-Flush

XXX2 - Flush

XXX3 - Razor Flush®

Handle Lengths

These cutters are available in two different handle lengths:

5XXX - Standard handle length.

7XXX - Ergonomic handle length.

CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER		 STANDARD
HANDLE		 ERGONOMIC
HANDLE
  FULL-RELEIF
SEMI FLUSH .020"-.080"
0.4mm-2mm
26-12 AWG		 5611 7611
FLUSH .010"-.080"
0.3mm-2mm
29-12 AWG		 5612 7612
RAZOR FLUSH® .010"-.060"
0.3mm-1.6mm
29-14 AWG		 5613 7613
