Other Cutters

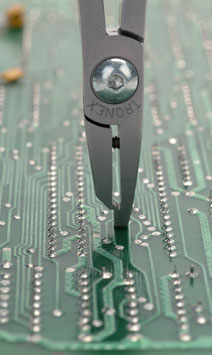

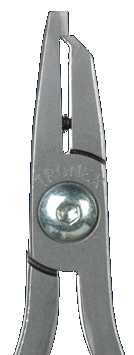

90° Standoff Cutter

Cuts leads to predetermined length and reduces shock to components. Standoff length available from 0.5mm - 3.0mm (.020" - .120"). Includes unique anti-dulling protection. Set screw prevents cutting edge from hitting the standoff leg after a cut has been made.

Cutting Edge

These cutters are available in one cutting edge finish:

SHEAR

Handle Lengths

These cutters are available in two different handle lengths:

5130 - Standard handle length.

7030 - Ergonomic handle length.

CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER
STANDARD
HANDLE
ERGONOMIC
HANDLE
SHEAR .008"-.025"
0.2mm-0.64mm
32-22 AWG
5030 7030

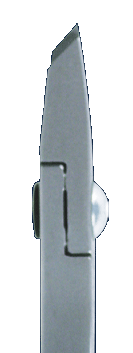

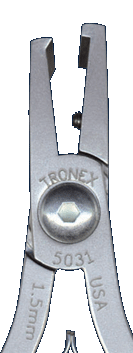

45° Standoff Cutter

Cutting Edge

These cutters are available in one cutting edge finish:

SHEAR

Handle Lengths

These cutters are available in two different handle lengths:

5031 - Standard handle length.

7031 - Ergonomic handle length.


CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER
STANDARD
HANDLE
ERGONOMIC
HANDLE
SHEAR .008"-.025"
0.2mm-0.64mm
32-22 AWG
5031 7031

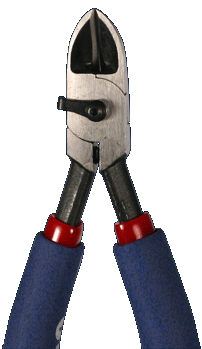

Heavy Duty Cutter

This cutter, forged of carbon steel, has strength in the head and joint areas needed to cut heavier gauge wire or cable. Cushion grips provide operator comfort. A jaw restraining device is attached to insure spring retention.

Cutting Edge

These cutters are available in one cutting edge finish:

Flush

Handle Lengths

These cutters are available in one handle lengths:

7812 - Ergonomic handle length.


CUTTING EDGE CUTTING CAPACITY
SOFT COPPER
WIRE DIAMETER
STANDARD
HANDLE
ERGONOMIC
HANDLE
FLUSH .010"-.080"
0.3mm-2mm
29-12 AWG
N/A 7812
