Products > Ionization Units > F12E-E
STATIC ERASER, Fan type

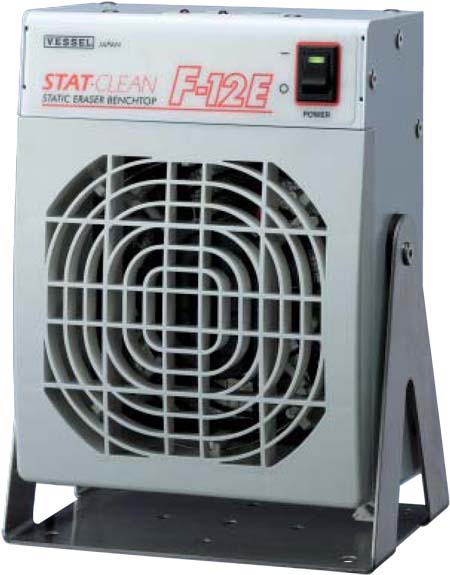

STAT·CLEAN F12E-E
Standard Powerful Ionizer
New Standard
Powerful static eraser blower that has both powerful static erasing capability and easy maintenance.
Features
- A New concept round electrical discharge unit provides a highly accurate ion balance of ±5 V or less.
- Highly reliable piezo alternating current will generate very little deterioration of the ion balance.
- Compact design is perfectly suitable for cell production machines.
- Adjustment dial provides step-less adjustment of the fan speed. Quiet 52 dB (At maximum fan speed)
- Power lamp and warning LED lamp are located on top of the unit making it easy to see at a glance during operation.
Pursuing safety and easy maintenance
- Uses 24V low-voltage wiring to avoid current leaks or negative impact on peripheral components.

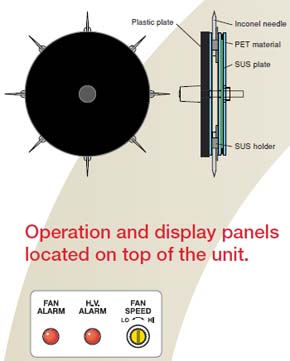

- First in the industry. Electric discharge plate removal/attachment mechanism makes maintenance easier.
- Front guard can be opened and closed with one touch. Comes with a limiter switch that turns off the power when opened.
- Electric discharge design provides highly efficient ion generation with little ozone generation (0.05 ppm or less).
- Comes with a fan rotation stoppage and high voltage abnormal warning LED.
Technical Specification
| Ion generation method | High voltage DC corona discharge |
| Output voltage | AC2.4kV |
| Input voltage | DC24V ± 5% 400mmA (max.) |
| Dimensions | H180×W142×D87 (H200×W151.5×D95 Includding stand) mm |
| Weight | 1.4kg |
| Fan speed | 3.4m3/min (at max. airflow) |
| Noise emission | 51.4 dBA (measured 1m from device at max. airflow) |
| Ozone generation | 0.05ppm or less (Measured at 50mm) |
| Working ambient Temperature/humidity | 5 - 40 °C / 35 - 65%RH (No dewing) |
| Distance from target area | 150 - 900mm (Installation location: Non-dangerous indoor location) |
| Static electricity removal time | Reter to the items in the capabilities chart. |
| Ion balance | Within ±5V (At 300mm) |
| Accessories | Adapter No.AD24-IT-EX |
| Consumables | Wire plate : F-12EH Filter : F-12EF |

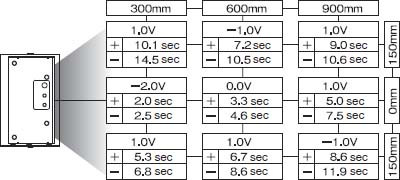

Static removal function |
Static erasing performance
Ion balance: Within ±5 V; Decay time: 3 sec or less (when using straight front cover)

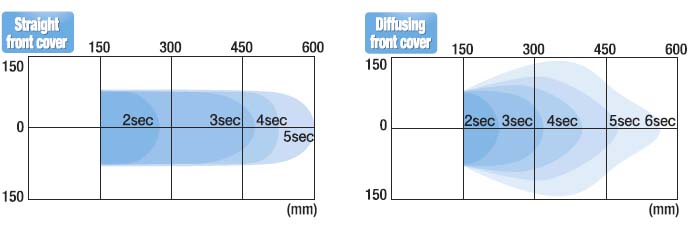

Static erasing area
Accessories
 |
Power Supply Transformer AD24-IT-EX |
Input: 100 to 240 VAC, 0.4 A Output: 24 VDC, 0.75A |
