Ion Parts Cleaner
STAT·CLEAN IPC40-E
Suitable for widerapplications.

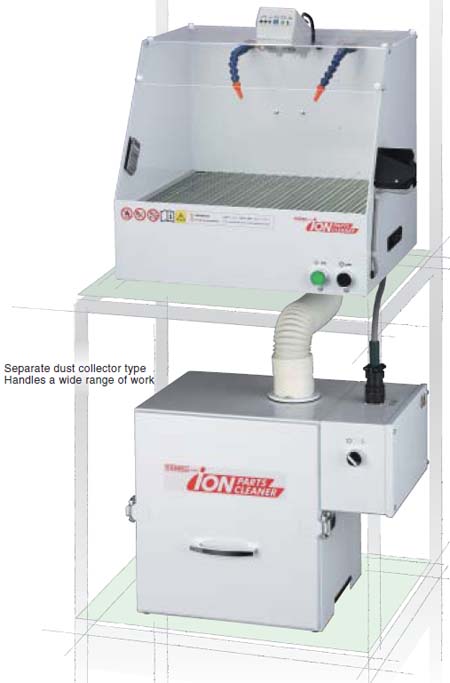

Separate Type of Top Hood and Bottom Collector
Wide & Powerful
Thoroughly cleans the workingarticles with stable ionized air and strong air blow.


The IPC40-E generates stable ionized air within its large hood and then sprays powerful air from its flexible nozzles to blow off foreign matter. The foreign matter that has been blown off is compulsorily collected by a dust collector to maintain a clean workplace.

Features

  • The hood that enables effective use of the limited workspace and the dust collector are separated.
  • An infrared sensor automatically controls dust removal air, so it can be operated with one hand, whereby boosting efficiency.
  • The air blow time can be adjusted between 0.5 and 5 seconds. (Initial setting is 3 seconds.)
  • FLEXIBLE AIR NOZZLE. The air nozzle can make fine adjustment to the direction of the air blower.
  • Hood opening is W450×H220mm, which supports wide work pieces.
  • Transparent acrylic sheet used for the ceiling, making the inside of the hood bright and easier to operate.
  • Installed with a small powerful ionizer (static electricity eraser), mini fan type, SDJ-08.

Applications

Ion-cleansing of products (removing static electricity and dust), removal of static electricity and dust from a wide range of plastic trays, etc. removing dust from plastic processed parts before painting or packaging, removing static electricity and dust from plastic covers and the clear covers of lights, etc. and for absorbing dust generated from peeling off or attaching liquid crystal film, etc.

Technical Specification

DUST COLLECTION METHOD Cylindrical Cartridge Filter
INPUT VOLTAGE Single-phase 230 VAC (50/60Hz)
POWER CONSUMPTION 200 W (50 Hz) / 280 W (60 Hz)
CURRENT CONSUMPTION 1.2 A (50 Hz) / 1.4 A (60 Hz)
DUST COLLECTION AIRFLOW 3.3m3/min (50Hz) / 4.0 m3/min (60Hz)
STATIC PRESSURE 0.88kPa (50Hz) / 1.23kPa (60Hz)
TABLE SURFACE
CONTROLLED AIR SPEED
0.4m/sec (50Hz) / 0.5m/sec (60Hz)
DUST COLLECTION VOLUME 1.2L
DUST COLLECTOR OUTPUT 200 W
MAX. AIRFLOW 0.4~0.7MPa (Use clean air)
AIR SUPPLY HOSE DIAMETER Ø6 × Ø4mm
WORKING TEMPERATURE RANGE 0 ~ +40 °C
WORKING HUMIDITY RANGE 20 ~ 80%RH
NOISE Hood Front 63dB (A) (50Hz) / 66dB (A) (60Hz)
Dust Collector Front 62dB (A) (50Hz) / 65dB (A) (60Hz)

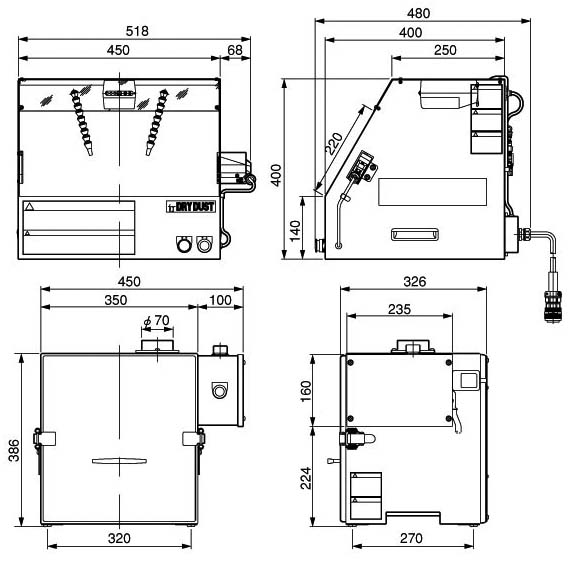

DIMENSIONS Hood H400×W518×D480mm
Dust Collector H386×W450×D326mm
WEIGHT Hood 11.5kg, Dust Collector 30kg
ACCESSORIES SDJ-08, AD24-IT ADAPTER × 1, Sensor Adjustment Driver × 1

* Domestic model also available as IPC-40 with an input power supply of 100 VAC. Please inquire at time of order.
