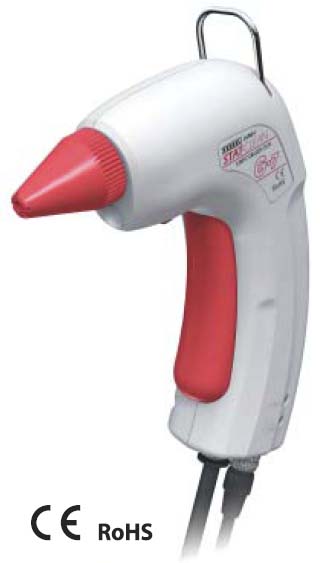

with LIGHT BEAM
Unique Extra Advantage
Simultaneous Brushing / Blowing in most efficiency
Check the small points with LED Beam Light.
To connect with the Tube for Nallow and Limited Ion Blowing.
PAC-8 Pulse Air Controller
Saving up to 60% of the air volume for the same ionizing effect.
Easy Handling Design for Better Solution!
- Ergonomic Handle(Grip Angle and Hand Glove Fitting.)
- Could see the dust with the light LED Beam.
- Resin Made Main Body, compact and Light weight.
- Quick Connecting with 6mm dia Tube Air Inlet.
- 150,000 cycle tested Robotic Cable adopted.
Exclusive Design for the Safety and Easy Maintenance !
- Safe Design with Power Transformer built-in.
- Quick Change of Discharge Needle for Easy Cleaning.
- Warning Lamp lighted when Irregularity happened.
- Low Noise disturbance won't affect any other electronic devices with surge function installed.
- High Voltage Output area has the function of anti Short Break immediate after overloaded.
Technical Specification
Applied voltage | 2.3 kVAC |
Ion generation method | High voltage AC corona discharge |
Ion balance | Within ±10V (Test value: at 0.3MPa and 150mm) |
Power supply | DC24V ± 5% |
Current consumption | 100 mA (max. when using LED illumination) |
Weight | 198g |
Air supply pressure | 0.1 ~ 0.6 MPa |
Air supply hose diameter | 6 mm x 4 mm |
Airflow | 202 L/min (at 0.3 MPa) |
Noise level | 84 dBA (measured 1 m from device at 0.3 MPa) |
Operating temperatur and humidity | 5 - 35 °C / 35 - 85%RH (non-condesing, non-freezing) |
Dimensions | W105×H150×D36mm (Standard Nozzle Mounted) |
Material | Casing,Trigger,Light Switch: ABS (Heat-resistant) Needle Pole: Tungsten Nozzle, Support Material: ABS (with glass fiber) |
Accessoires | Power supply transformer (AD24-ITC-E) Standard Nozzle (G-7SN) |
Optional parts | Tube-fitting Nozzle (G-7TN), Brush (G-7B), Electrode Needle Replacement Screwdriver (G-7DR) |
Static erasing performance
Ion balance: Within ±10 V; Decay time: 0.5 sec or less (150 mm from surface, 0.3 MPa, Standard Nozzle)

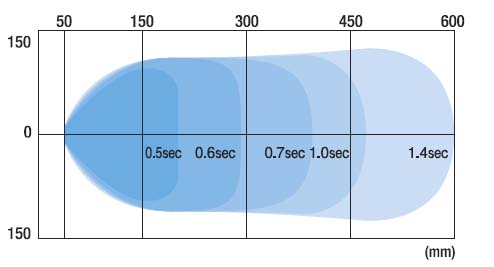

Static erasing area
Air pressure: 0.3 MPa, with Standard Nozzle attached
Accessories
Standard Nozzle (included) G-7SN |
|
Power Supply Transformer (included) AD24-ITC-E |
Options

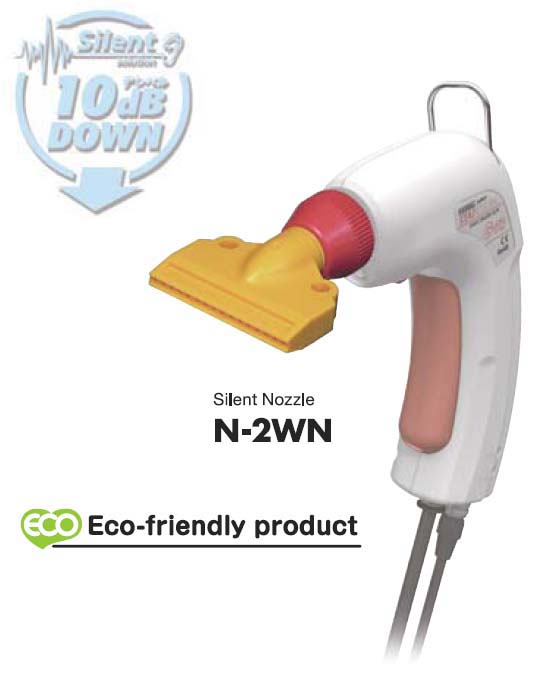

Silent Nozzle N-2WN |
Spare parts
Part Number | Description | |
---|---|---|
AL-15-G7 | Compressed Air Flex Line, 6mm OD / 4mm ID, Working lenghts 15' (~4.5m) | |
XMF-110 | Micro Filter, 90-130 microns/120psi |
