Static Electricity Locator is a must for everyone to "see" static field.
Indispensable, inexpensive tool to protect and prevent Static Electricity Damage. Also- verify effectives of applied counter-measures.
Pocket-size. Runs six months on AA-Batteries.
Features
- The potential of Static Electricity accumulated on an object under investigation is shown on digital display. No need to touch. Simply point and measure Invisible Static Electricity.
- Voltage is measured and indicated in units of 100V in a range from -19.9 to + 19.9KV every 0.5 second.

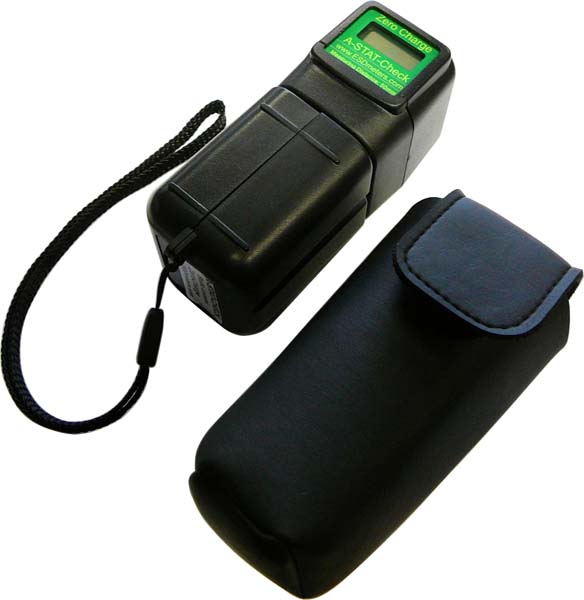

- Handy, portable, small and lightweight. Soft storage case included.
- Low power consumption. Can be used with 4 AA batteries for about 6 months.
- Supplied with soft, protective Etui.
Applications
Checking the presence of Static Electricity everywhere. Helps you to “see” what you can not see otherwise, and prepare countermeasure against Static Charge. Indispensable in Electronics production and Service. Also very useful in resin molding, film or paper processing, during packing containers, or checking coated sheet metal surfaces for charging, and Indispensable in testing the effect of the electricity removal.
Technical Specification
| RANGE OF INDICATION | 0.0 to ±19.9 KV (0.1KV scale) |
| DETECTABLE DISTANCE | 50 mm (between locator and charged item) |
| RESPONSE TIME | 0.5 sec |
| AMBIENT TEMPERATURE | 0 ~ 40 °C |
| AMBIENT HUMIDITY | 20 to 90%RH (no dewing) |
| DIRECTIVITY | Forward direction from the sensor hole |
| POWER SUPPLY VOLTAGE | 6V DC (AA batteries×4) |

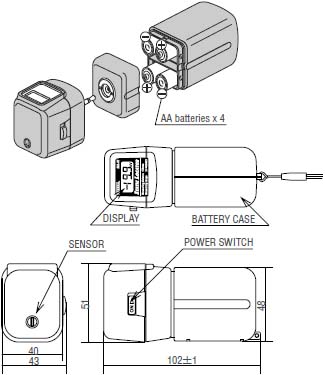

| SIZE | H51×W102×D43mm |
| WEIGHT | 170g (including batteries) |
| ACCESSORIES | AA batteries×4, soft case x1 |
