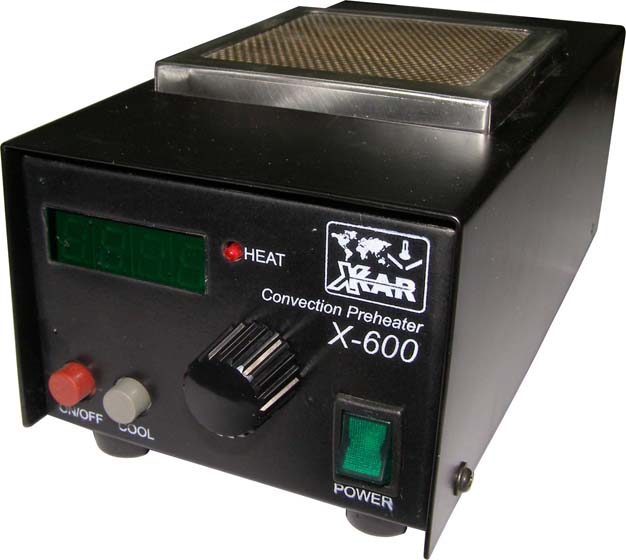

X-600 Small Digital Convection PCB Pre-heater

The X-600 PCB Pre-heater is extremely accurate, have user adjustable off-set and unique acceleration mode to speed-up initial warm-up from room temperature. Built-in "K" thermocouple type temperature meter provides on board means for verification of actual rework process temperatures at the point selected by the user. It was designed to reduce the workspace required for SMT Rework and Repair. This design emphasizes on the appropriate process control for Rework and Repair. Pre-heater Unit is microprocessor controlled to maintain accuracy and to extend heating element life.

CE
RoHS		 X-600
X-600 Small Digital Convection PCB Pre-heater

System Features:

  • Microprocessor controlled by powerful firmware which, when up-grated, can be downloaded free of charge from x-kar or bokar websites.
  • High power, small area pre-heat chamber.
  • ESD safe.
  • Close loop temperature PID control maintaining set temperatures with high accuracy and extending heaters life.
  • "Cool" function
  • FOCUS link to connect with FOCUS systems
  • X-DataStore for connect with a PC
  • LED display: 4x7 segments

System includes:

  • X-600 Unit
  • System Manual
  • Warranty Card

Available models:

  • X-600/230 - Small Digital Convection PCB Pre-heater, Supply Voltage 207-242V.
  • X-600/115 - Small Digital Convection PCB Pre-heater, Supply Voltage 104-127V.

Technical Specifications:

MODEL X-600/230 X-600/115
Input Voltages 207-242V AC 104-127V AC
Power Consumption 600 W
System dimensions (W x H x D) 4.1" x 3.7" x 7.9" (105 x 95 x 200 mm)
Chimney dimension 3.5" x 3.5" (90 x 90 mm)
Preheat Temperature measured on a PCB 140-302 °F (60 -150 °C)
Average PCB preheat time to 150°C Less than 2 min.
