Hi-Temperature (500° F) Tape, Low Static Polyimide Film
Tape |
The tape has extremely low electrostatic discharge at unwind and removal from PWB. 2.6 mil total tape thickness. Adhesion to steel: 22 oz./in. width. Used where high static charge is of concern, e.g. as masking tape in the clean room.
Features:
- STATIC CHARGE (@50% RH, 70°F):
- Removal from roll: < 150 Volts
- Removal from PWB: < 50 Volts
- 36 yards per roll.
- Width: 1/2” (12,5mm).
- Operating temperature range: -100 deg. to 500 deg. F (-73 - 260 °C).
- Ideal for solder mask applications and attaching thermocouples to a board during rework or repair.
|
|
Available models:
Part Number |
Width |
KT-1 |
1/2" (12,5mm) |
KT-2 |
3/4" (19.05mm) |
|
K-12A SERIES MASKING TAPE |
UL Number E197661. Equivalent of TESA 51408-09002-02
DESCRIPTION:
K12A is a Polymide film tape incorporating a high performance silicone
adhesive. The product is designed for numerous high temperature masking
applications, including the protection of printed circuit board gold finger
contacts during wave soldering. It is UL approved for use in electrical
insulation applications meeting class H requirements.
|
|
TECHNICAL DATA |
VALUE |
Color |
Amber |
Adhesion Type |
Silicone |
Film Thickness (mils) |
1.0 |
Adhesive Thickness |
1.7 +/- 0.2 |
Total Thickness (mils) |
2.7 |
Peel Adhesion: lbs/inch |
23 |
Tensile Strength (lbs/inch) |
30 |
Elongation: % |
60 |
Dielectric Strength, volts |
6800 |
Resistance to: acids, oils, solvents |
Excellent |
Product Features:
- Thin and conformable enabling masking of uneven surfaces
- Wide operating temperature range up to 500°F
- Removes cleanly without adhesive residue after exposure to heat and/or
chemicals
- High strength backing provides superior puncture, tear, and abrasion
resistance
- Resistant to chemical attack
- Excellent electrical insulation
- UL approved
Typical End Uses:
- High temperature masking
- Protection of circuit board gold finger contacts during wave solder or hot
air leveling process
Available sizes:
PART NUMBER |
WIDTH |
LENGTH |
INCHES |
MM |
YD |
M |
KT-3.2A |
0.125 |
3.2 |
36.000 |
32.918 |
KT-6.5A |
0.250 |
6.4 |
36.000 |
32.918 |
KT-9.5A |
0.375 |
9.5 |
36.000 |
32.918 |
KT-12A |
0.500 |
12.7 |
36.000 |
32.918 |
KT-16A |
0.625 |
15.9 |
36.000 |
32.918 |
KT-19A |
0.750 |
19.1 |
36.000 |
32.918 |
KT-25A |
1.000 |
25.4 |
36.000 |
32.918 |
|

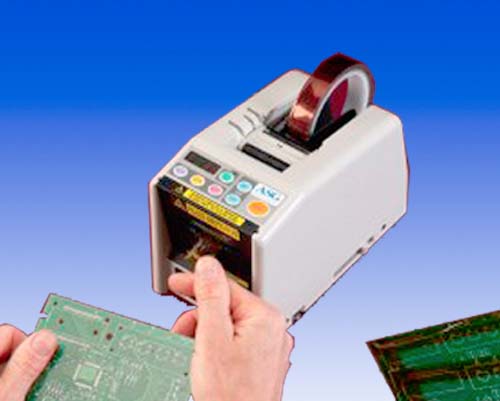

Model Number A-TM7
This unit is compact and powerful. It will fit nicely on your work
stations or cell system. It is constructed around a small foot print to
save valuable work space.
The unit can be used to cut tape, tube, film, aluminum foil and more.
The A-TM7 easily cuts through tough tapes such as Filament, Strong, Kapton,
Acetate, Glass Cloth, Double sided, Normex and more.
- Unit has dual photo sensors for use with 2 rolls at a time.
- Cut lengths: 5mm to 999mm (3/16" to 39") 1mm increments.
- Tape Width: 6mm to 55mm (1" to 2")
- Adjustable to limit tape curling.
- No special bobbin is needed to hold the tape.
- Built in tweezers for small pieces.
The unit has 4 dispensing modes that will help to improve productivity.
- Automatic feeds and cuts tape when the last piece is taken.
- Feeds a single piece of tape each time the button is depressed.
- Can be programmed to cut a preset number of pieces.
- Can be programmed to continually feed and cut to a predetermined
length and quantity of non-adhesive material.
|
|

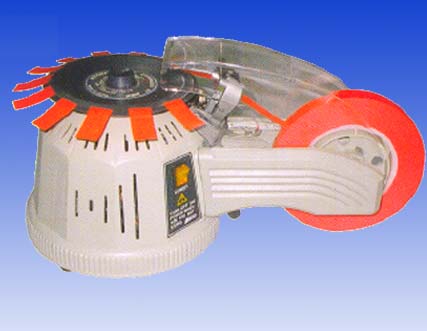

Model Number A-TM2
The A-TM2 tape dispenser is designed to help reduce waste and operator
fatigue. With the touch of a single button the A-TM2 will dispense tape
half way around the turntable making it convenient for an operator or a
group of several when placed between them.
The unit provides your operators with tape that is cut to a constant
length while maintaining a straight cut on each end. The dispenser will
accept virtually any type of tape including Vinyl-, masking-, cellophane-,
polyethylene-, paper-, acetate cloth-, cotton cloth-, Mylar-, glass
cloth-, soft forming-, aluminum foil-, double sided-, Teflon-, Nomex-,
glass filament-, and many others.
Cut length Range: |
13mm to 59mm (.51" - 2.32") |
Maximum Tape O.D.: |
30mm (5.11 ") |
Core sizes: |
26mm(1.02"), 31mm (1.22"), 32mm (1.25"), 33mm
(1.29"), 77mm (3.03") |
Overall Dimensions: |
130mm x 165mm x 170mm 5.11" x 6.49"x 6.69" |
Weight |
2.8kg (6.17lbs) |
|
