PBGA Plastic Ball Grid Array
PBGA 1.0mm PitchPBGA 1.5mm/1.27mm Pitch
PBGA packages are designed for low inductive, improved thermal operation and enhanced SMT ability. PBGA packages are ideal for microprocessors/controllers, ASICs, gate arrays, memory, DSPs and PC chip set applications. PBGA packages consist of a BT (Bismaleimide-Triazine) substrates with eutectic (63/37) solder balls attached. Solder ball pitches are 1.0mm, 1.27m and 1.5mm. Solder Ball patterns can come perimeter, staggered or full ball array. Body sizes can range from 13mm to 45mm. PBGAs are JEDEC standard outlines |
PBGA — Plastic Ball Grid Array (1.0mm Pitch) |
Amkor PBGA BGA Variable Pitch/Array Kit BGA Global Daisy-Chain Kit Solder Practice Board/Kit |
Part Number | I/O Count |
Pitch | Body Size |
Ball Matrix |
Ball Alignment |
Quantity Per Tray |
PBGA144-1.0mm-13mm | 144 | 1.0mm | 13mm | 12 x 12 | Full Grid | 160 |
PBGA156-1.0mm-15mm | 156 | 1.0mm | 15mm | 14 x 14 | Perimeter | 126 |
PBGA160-1.0mm-15mm | 160 | 1.0mm | 15mm | 14 x 14 | Perimeter | 126 |
PBGA196-1.0mm-15mm | 196 | 1.0mm | 15mm | 14 x 14 | Full Grid | 126 |
PBGA208-1.0mm-17mm | 208 | 1.0mm | 17mm | 16 x 16 | Perimeter | 90 |
PBGA256-1.0mm-17mm | 256 | 1.0mm | 17mm | 16 x 16 | Full Grid | 90 |
PBGA288-1.0mm-23mm | 288 | 1.0mm | 23mm | 22 x 22 | Perimeter | 60 |
PBGA324-1.0mm-23mm | 324 | 1.0mm | 23mm | 22 x 22 | Perimeter | 60 |
|
|
PBGA — Plastic Ball Grid Array (1.5mm/1.27mm)
Drawing | Part Number | I/O Count |
Pitch | Body Size |
Ball Matrix |
Ball Alignment |
Quantity Per Tray |
PBGA121-1.27mm-15mm | 121 | 1.27mm | 15mm | 11 x 11 | Full Grid | 126 | |

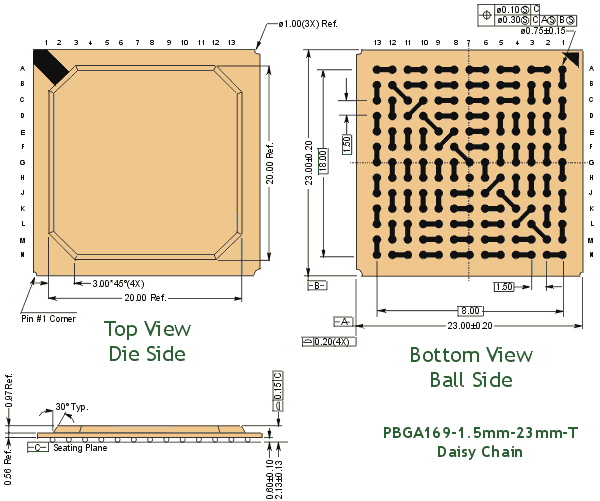

Drawing | PBGA169-1.5mm-23mm | 169 | 1.5mm | 23mm | 13 x 13 | Full Grid | 60 |

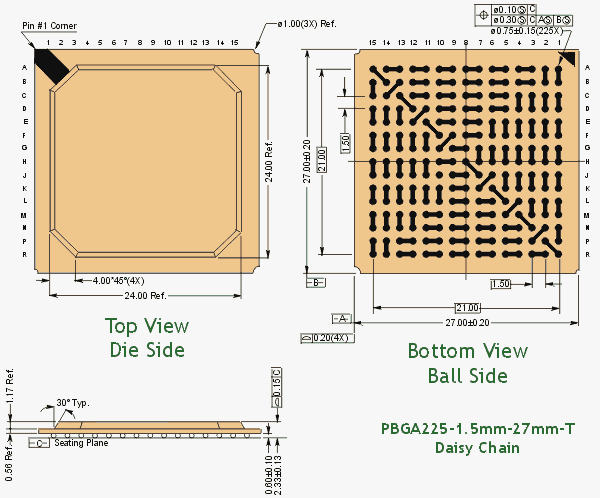

Drawing | PBGA225-1.5mm-27mm | 225 | 1.5mm | 27mm | 15 x 15 | Full Grid | 40 |

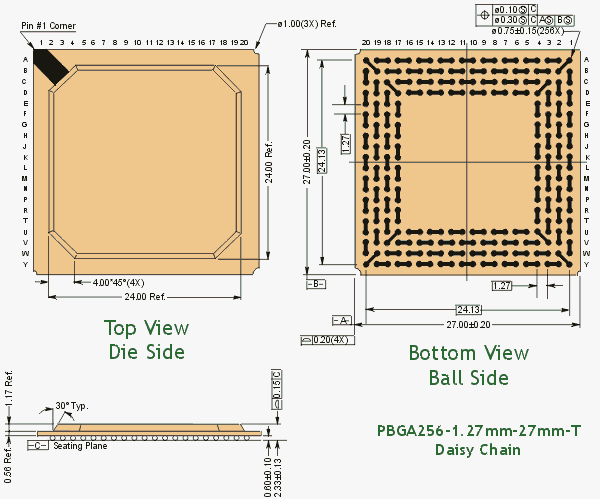

Drawing | PBGA256-1.27mm-27mm | 256 | 1.27mm | 27mm | 20 x 20 | Perimeter | 40 |

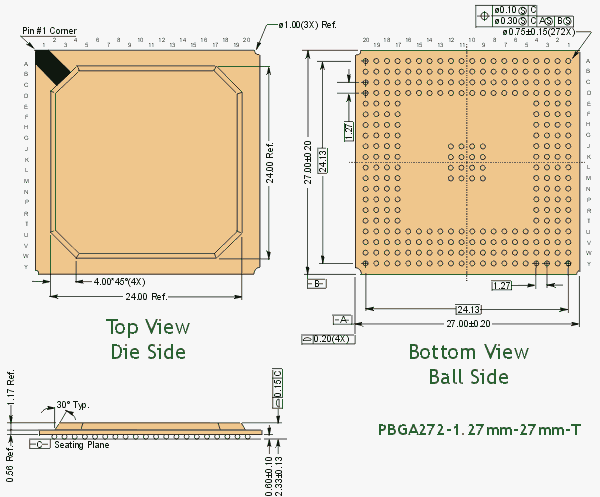

Drawing | PBGA272-1.27mm-27mm | 272 | 1.27mm | 27mm | 20 x 20 | Perimeter | 40 |

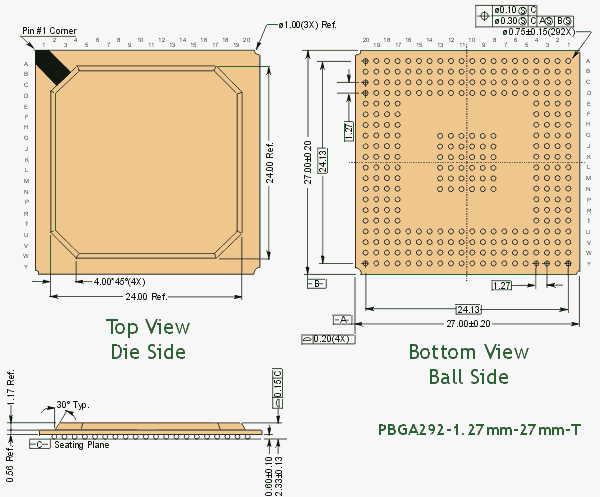

Drawing | PBGA292-1.27mm-27mm | 292 | 1.27mm | 27mm | 20 x 20 | Perimeter | 40 |

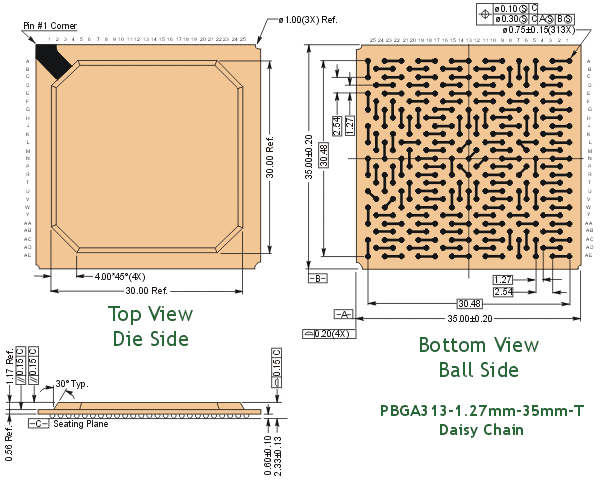

Drawing | PBGA313-1.27mm-35mm | 313 | 1.27mm | 35mm | 25 x 25 | Stagger | 24 |
Drawing | PBGA324-1.27mm-27mm | 324 | 1.27mm | 27mm | 20 x 20 | Perimeter | 40 |

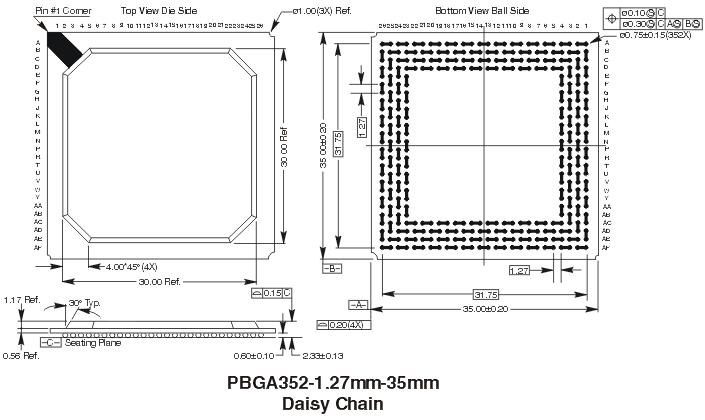

Drawing | PBGA352-1.27mm-35mm | 352 | 1.27mm | 35mm | 26 x 26 | Perimeter | 24 |

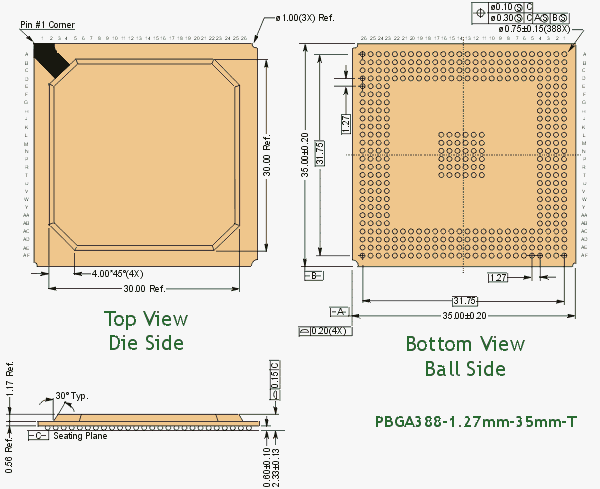

Drawing | PBGA388-1.27mm-35mm | 388 | 1.27mm | 35mm | 26 x 26 | Perimeter | 24 |
Drawing | PBGA420-1.27mm-35mm | 420 | 1.27mm | 35mm | 26 x 26 | Perimeter | 24 |

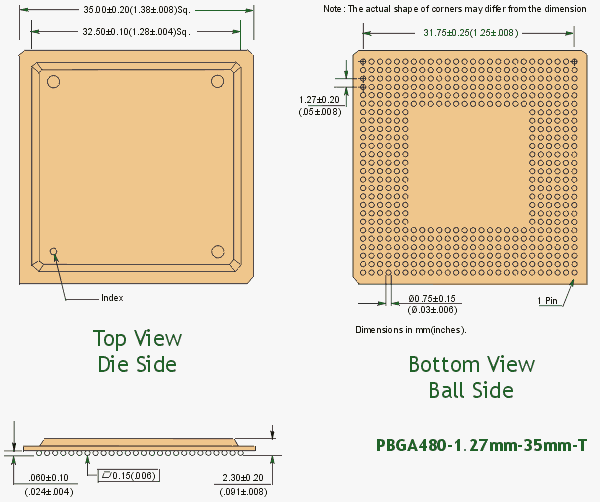

Drawing | PBGA480-1.27mm-35mm | 480 | 1.27mm | 35mm | 26 x 26 | Perimeter | 24 |
PBGA676-1.27mm-35mm | 676 | 1.27mm | 35mm | 26 x 26 | Full Grid | 24 |
|
|
