Products > Practical > Test Boards and Kits > Omni Practice
Through-Hole Training Kit
|
Click to View

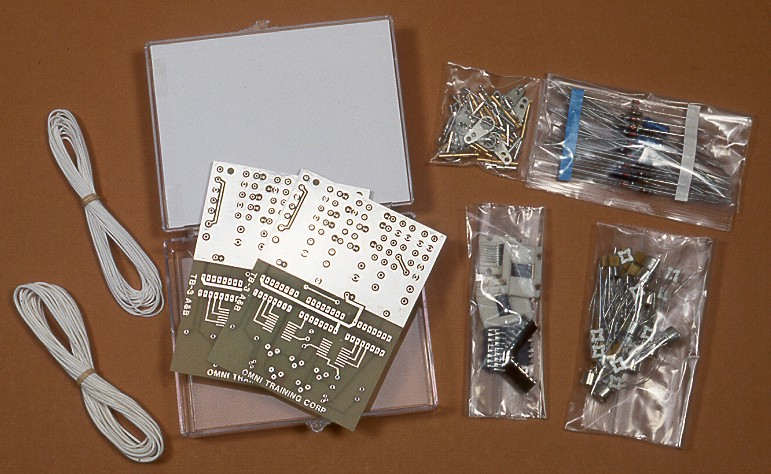

Part #:TK-1M
|
| 15 |
Turret Terminals* |
| 15 |
Bifurcated Terminals* |
| 15 |
Hook Terminals* |
| 15 |
Pierced Terminals* |
| 15 |
Cup Terminals* |
| 15' |
22 Gauge Wire |
| 15' |
26 Gauge Wire |
| 10 |
TO5 Transistors |
| 10 |
Spacers for TO5 |
| 4 |
TO18 Transistors |
|
 |
| 4 |
Spacers for TO18 |
| 20 |
1/4 Watt Resistors |
| 12 |
1/2 Watt Resistors |
| 10 |
Diodes |
| 20 |
Capacitors (CKO) |
| 4 |
Capacitors (Axial) |
| 6 |
DIPs 14/16 Pin |
| 4 |
Flat Packs 14 Pin |
| 2 |
TB-3M PWB |
|
- *Terminal components do not fit in TB-3M board. You need to use
the terminal
holder.
- TB3 board is now available with solder mask and silk screen
component identification
|
Through-Hole Recertification Kit
| Part #: TK-1R |
For verification of
soldering operator's skills for though-hole board technology. This kit
provides sufficient components for students to assemble and solder final
workmanship samples for evaluation. |
| 1 |
TB-3M
Through-Hole PWBs |
| 3 |
TO5
Transistors |
| 3 |
TS5/18 TO5
and TO18 Transistor Spacers |
| 7 |
RCO7 1/4 Watt
Resistors |
| 2 |
CKO5
Capacitors |
| 2 |
IC6 16 Lead
DIPs |
| 1 |
FP14 14 Lead
Flat Packs |
|
- TB3 board is now available with solder mask and silk screen
component identification.
|
Standard Pitch Training Kit
|
Click to View

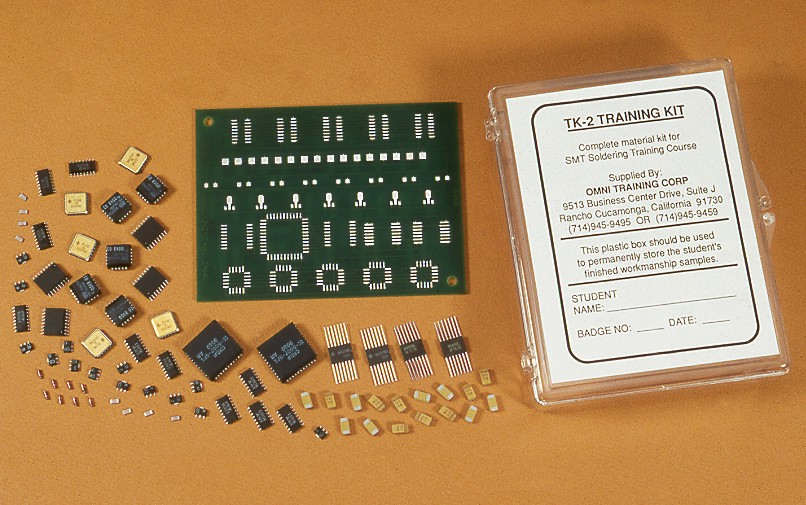

Part #: TK-2
|
| 4 |
SOIC - Small Outline IC
16 pin (300 mils wide) |
| 5 |
PLCC - Plastic Leaded
Chip Carrier 20 Pin |
| 2 |
PLCC - Plastic Leaded
Chip Carrier 44 Pin |
| 10 |
SOIC - Small Outline IC
16 pin (150 mils wide) |
| 5 |
LCC - Leadless Ceramic Chip Carrier |
|
| 14 |
Small
Outline Transistor SOT89 |
| 8 |
Chip
Resistor 1206 |
| 8 |
MELF -
Metal Electrode Face Device SOD80 |
| 16 |
Tantalum
Capacitor “C” Case (6032) |
| 4 |
Flat Pack
14 Pin |
| 1 |
TB4 PWB |
|
Fine Pitch Training Kit
|
Click to View

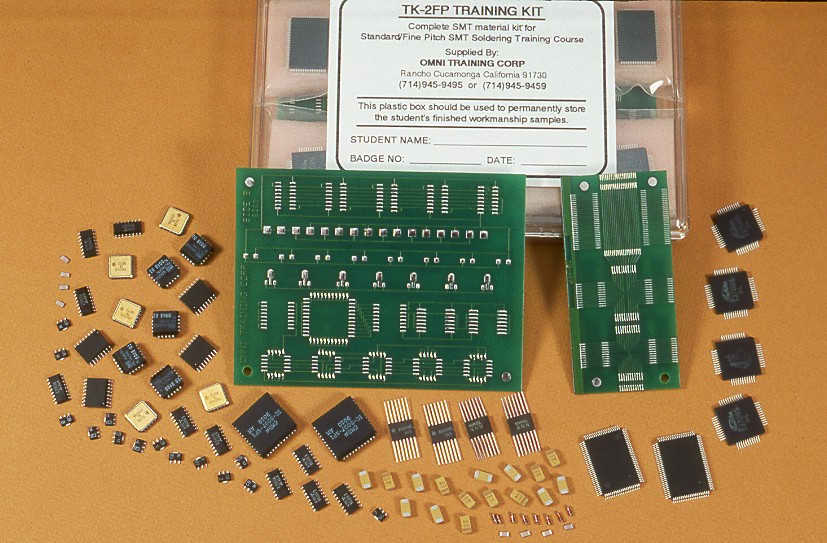

Part #: TK-2FP
|
This kit contains all the material listed
for the TK-2 Training Kit plus:
|
| 4 |
QFP - Quad Flat Packs 44 Pins(
0.030" Pitch) |
| 2 |
QFP - Quad Flat Packs 100 Pins
(0.025" Pitch) |
| 1 |
TB4 - TB4FP PWB (Replaces TB4
PWB) |
Omni
Training Products
